Magnitude
 :3.1
Date & Time (UTC) 2021-10-14 07:08:36.5
Date & Time (Local) 1400/7/22  10:38:36.5

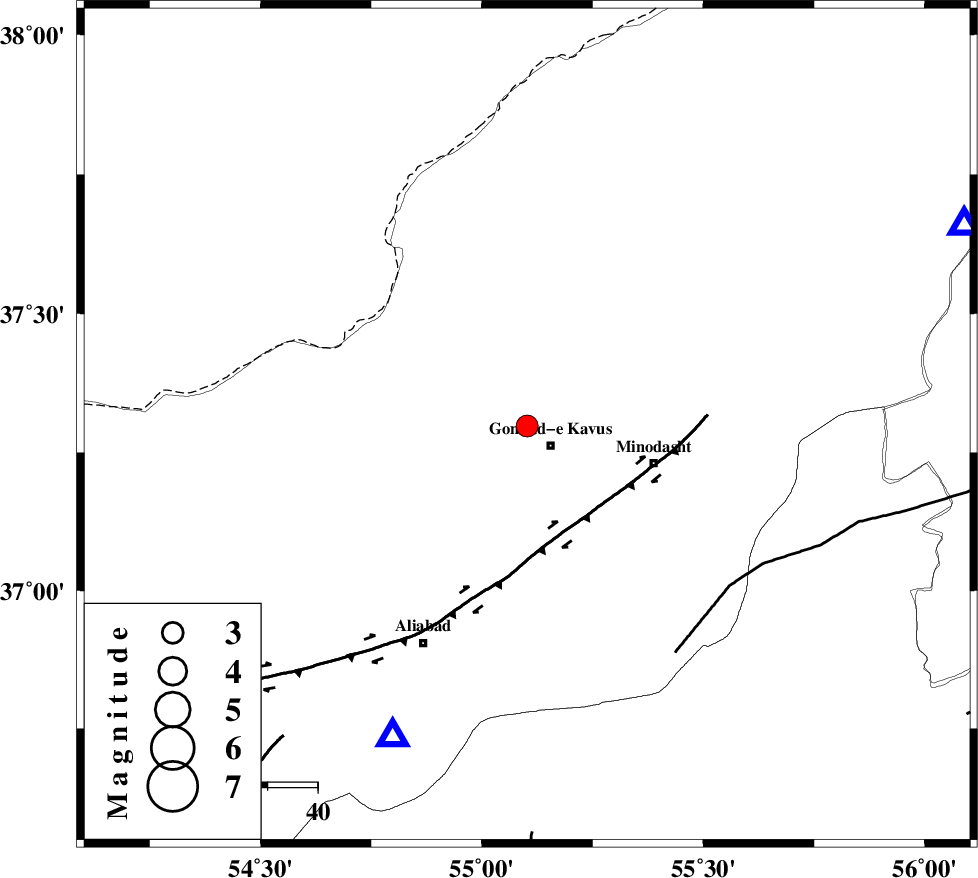

Location Lat:37.298 Lon: 55.102
Region Golestan Province, 6 km of Gonbad-e kavus
Nearest Cities
5 km North of Soltanali, Golestan Province
6 km North of Gonbad-e kavus, Golestan Province
14 km North West of Aqabad, Golestan Province
16 km North of Baghli marma, Golestan Province
19 km North of Nezamabad, Golestan Province
Depth 10 km
Agency
Faults within 150 km:
KHAZAR_F (Length: 523 km) , Distance to epicenter: 35 km
ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 52 km
SHAVAR_F (Length: 87 km) , Distance to epicenter: 59 km
Number of Phases 7
RMS 0.7
Number of Stations 7
Error in Latitude >2.1 km
Error in Longitude 2.1 km
Error in Depth 4.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
165790IIEES SCCHTHZ 0.0212021-10-14 07:09:322021-10-16 05:23:00n
165791IIEES SCTABSZ 0.0312021-10-14 07:09:392021-10-16 05:23:00n
165792IIEES SCGIDEZ 0.0712021-10-14 07:09:422021-10-16 05:23:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCABGHZ EPg E2021-10-14 07:08:491.4y068203
IIEES SCMRVTZ EPg E2021-10-14 07:08:530.6y09665
IIEES SCSHROZ EPg E2021-10-14 07:09:02-0.8y0165150
IIEES SCCHTHZ EPn E2021-10-14 07:09:32-0.6y0388247
IIEES SCKAGHZ EPn E2021-10-14 07:09:37-0.8y043395
IIEES SCTABSZ EPn E2021-10-14 07:09:39-0.1y0444156
IIEES SCGIDEZ EPn E2021-10-14 07:09:42-0.5y0471265
