Magnitude |
:3.9 |
| Date & Time (UTC) | 2022-09-02 23:47:04.6 |
| Date & Time (Local) | 1401/6/12 04:17:04.6 |

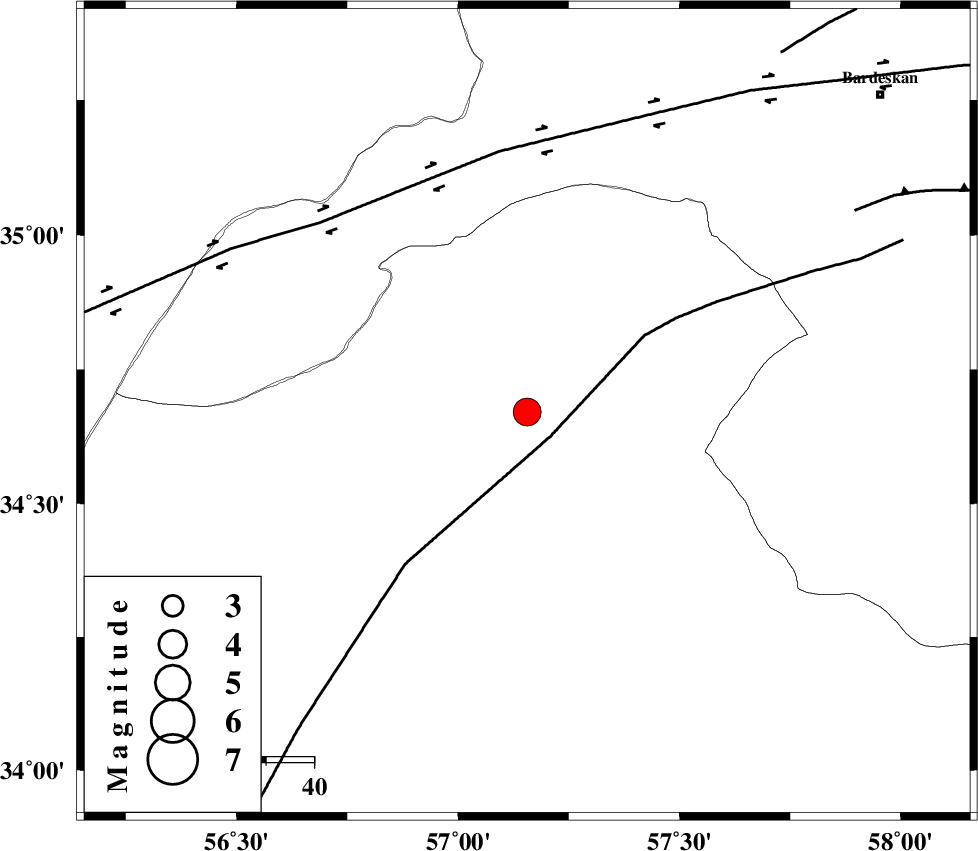

| Location | Lat:34.67 Lon: 57.156 |
| Region | Yazd Province, 121 km North-East of Tabas |
Nearest Cities |
|
| 27 km South of Tappeh taq, Yazd Province | |
| 41 km North East of Eshqabad, Yazd Province | |
| 72 km North West of Qaniabad, Khorasan(center) Province | |
| 88 km South West of Shahrabad, Khorasan(center) Province | |
| 91 km North West of Mazar, Khorasan(center) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 7 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 54 km | |
| MEHDIABAD_F (Length: 64 km) , Distance to epicenter: 79 km | |
| Number of Phases | 14 |
| RMS | 0.5 |
| Number of Stations | 14 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 11.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173122 | IIEES SC | TABS | Z | 10 | 1 | 2022-09-02 23:47:24 | 2022-09-03 04:01:00 | n |
| 173123 | IIEES SC | BJRD | Z | 0.1 | 1 | 2022-09-02 23:47:54 | 2022-09-03 04:01:00 | n |
| 173124 | IIEES SC | YZKH | Z | 0.9 | 1 | 2022-09-02 23:47:55 | 2022-09-03 04:01:00 | n |
| 173125 | IIEES SC | BSRN | Z | 0.3 | 1 | 2022-09-02 23:47:56 | 2022-09-03 04:01:00 | n |
| 173126 | IIEES SC | KAGH | Z | 0.1 | 1 | 2022-09-02 23:47:57 | 2022-09-03 04:01:00 | n |
| 173127 | IIEES SC | GLO | Z | 2 | 1 | 2022-09-02 23:47:58 | 2022-09-03 04:01:00 | n |
| 173128 | IIEES SC | KRBR | Z | 0.4 | 1 | 2022-09-02 23:48:16 | 2022-09-03 04:01:00 | n |
| 173129 | IIEES SC | GHVR | Z | 0.3 | 1 | 2022-09-02 23:48:20 | 2022-09-03 04:01:00 | n |
| 173130 | IIEES SC | KLNJ | Z | 0.05 | 1 | 2022-09-02 23:48:35 | 2022-09-03 04:01:00 | n |
| 173131 | IIEES SC | KHMZ | Z | 0.04 | 1 | 2022-09-02 23:48:35 | 2022-09-03 04:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | EPg | E | 2022-09-02 23:47:24 | 1.1 | y | 0 | 113 | 182 | ||
| IIEES SC | SHRO | Z | EPg | E | 2022-09-02 23:47:19 | -14.3 | n | 4 | 181 | 325 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-09-02 23:47:49 | -0.5 | y | 0 | 297 | 77 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-09-02 23:47:51 | -0.2 | y | 0 | 313 | 317 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-09-02 23:47:54 | -0.3 | y | 0 | 337 | 4 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-09-02 23:47:55 | 0 | y | 0 | 345 | 344 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-09-02 23:47:55 | -0.4 | y | 0 | 348 | 223 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-09-02 23:47:56 | -0.1 | y | 0 | 352 | 149 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-09-02 23:47:57 | 0.5 | y | 0 | 357 | 45 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-09-02 23:47:58 | 0.1 | y | 0 | 364 | 304 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-09-02 23:48:16 | -0.7 | y | 0 | 521 | 184 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-02 23:48:20 | 0.2 | y | 0 | 543 | 268 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-02 23:48:35 | 0.7 | y | 0 | 660 | 232 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-09-02 23:48:35 | -0.4 | y | 0 | 671 | 261 | ||
