Magnitude |
:3.6 |
| Date & Time (UTC) | 2022-09-13 00:51:27.5 |
| Date & Time (Local) | 1401/6/22 05:21:27.5 |

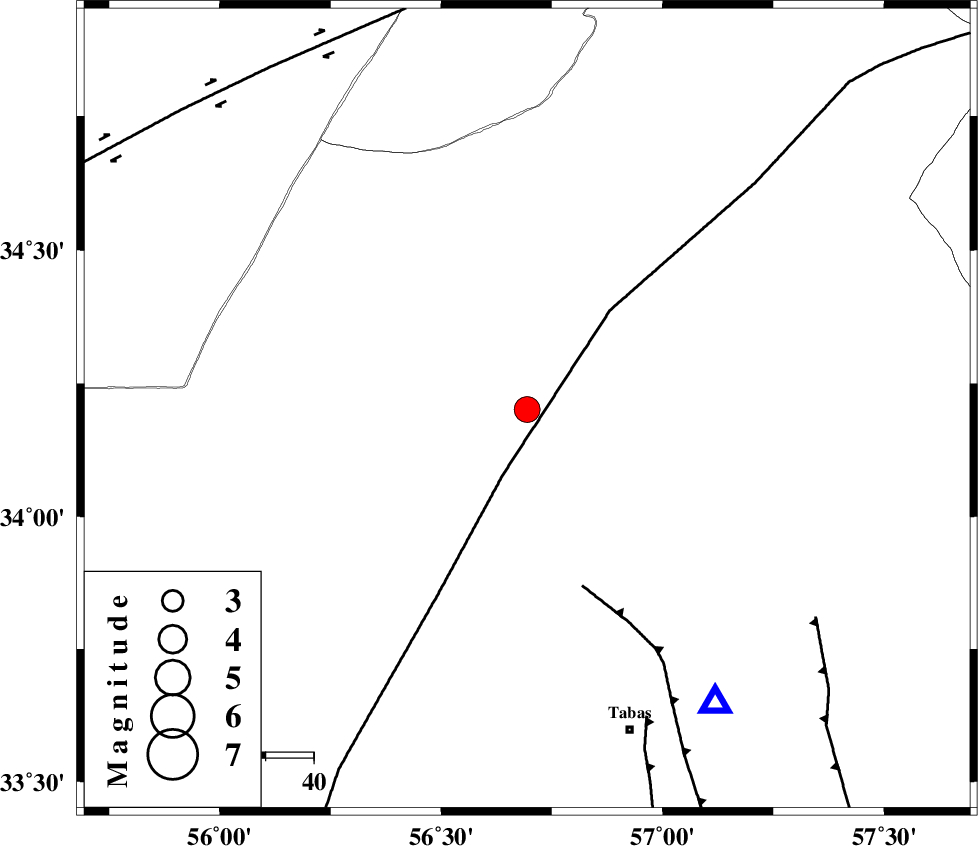

| Location | Lat:34.201 Lon: 56.694 |
| Region | Yazd Province, 70 km North-West of Tabas |
Nearest Cities |
|
| 27 km South West of Eshqabad, Yazd Province | |
| 47 km North East of Halvan, Yazd Province | |
| 54 km North of Jokhvah, Yazd Province | |
| 63 km North West of Qaniabad, Khorasan(center) Province | |
| 67 km North West of Reqqeh, Khorasan(center) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| NAINI_F (Length: 342 km) , Distance to epicenter: 14 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 39 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 69 km | |
| Number of Phases | 14 |
| RMS | 0.3 |
| Number of Stations | 14 |
| Error in Latitude | >1 km |
| Error in Longitude | 1 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 173478 | IIEES SC | TABS | Z | 3 | 1 | 2022-09-13 00:51:40 | 2022-09-13 04:01:00 | n |
| 173479 | IIEES SC | YZKH | Z | 0.9 | 1 | 2022-09-13 00:52:10 | 2022-09-13 04:01:00 | n |
| 173480 | IIEES SC | BSRN | Z | 0.4 | 1 | 2022-09-13 00:52:17 | 2022-09-13 04:01:00 | n |
| 173481 | IIEES SC | MRVT | Z | 0.07 | 1 | 2022-09-13 00:52:23 | 2022-09-13 04:01:00 | n |
| 173482 | IIEES SC | BJRD | Z | 0.07 | 1 | 2022-09-13 00:52:24 | 2022-09-13 04:01:00 | n |
| 173483 | IIEES SC | DAMV | Z | 0.1 | 1 | 2022-09-13 00:52:32 | 2022-09-13 04:01:00 | n |
| 173484 | IIEES SC | KRBR | Z | 0.3 | 1 | 2022-09-13 00:52:33 | 2022-09-13 04:01:00 | n |
| 173485 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-09-13 00:52:37 | 2022-09-13 04:01:00 | n |
| 173486 | IIEES SC | CHTH | Z | 0.03 | 1 | 2022-09-13 00:52:43 | 2022-09-13 04:01:00 | n |
| 173487 | IIEES SC | ASAO | Z | 0.04 | 1 | 2022-09-13 00:52:52 | 2022-09-13 04:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | EPg | E | 2022-09-13 00:51:40 | 0.6 | y | 0 | 73 | 147 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-09-13 00:52:10 | 0.2 | y | 0 | 280 | 224 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-09-13 00:52:16 | 0.2 | y | 0 | 330 | 329 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-09-13 00:52:17 | -0.1 | y | 0 | 336 | 138 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-09-13 00:52:19 | -0.2 | y | 0 | 353 | 70 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-09-13 00:52:24 | 3.2 | n | 4 | 364 | 314 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-09-13 00:52:23 | 0 | y | 0 | 388 | 352 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-09-13 00:52:24 | 0.3 | y | 0 | 394 | 9 | ||
| IIEES SC | DAMV | Z | EPn | E | 2022-09-13 00:52:32 | 0.1 | y | 0 | 460 | 290 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-09-13 00:52:33 | -0.3 | y | 0 | 468 | 179 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-09-13 00:52:37 | -0.9 | y | 0 | 502 | 274 | ||
| IIEES SC | CHTH | Z | EPn | E | 2022-09-13 00:52:43 | 0 | y | 0 | 542 | 290 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-09-13 00:52:51 | 1.5 | n | 4 | 596 | 234 | ||
| IIEES SC | ASAO | Z | EPn | E | 2022-09-13 00:52:52 | 0.2 | y | 0 | 614 | 274 | ||
