Magnitude |
:4.1 |
| Date & Time (UTC) | 2022-12-13 14:58:36.4 |
| Date & Time (Local) | 1401/9/22 18:28:36.4 |

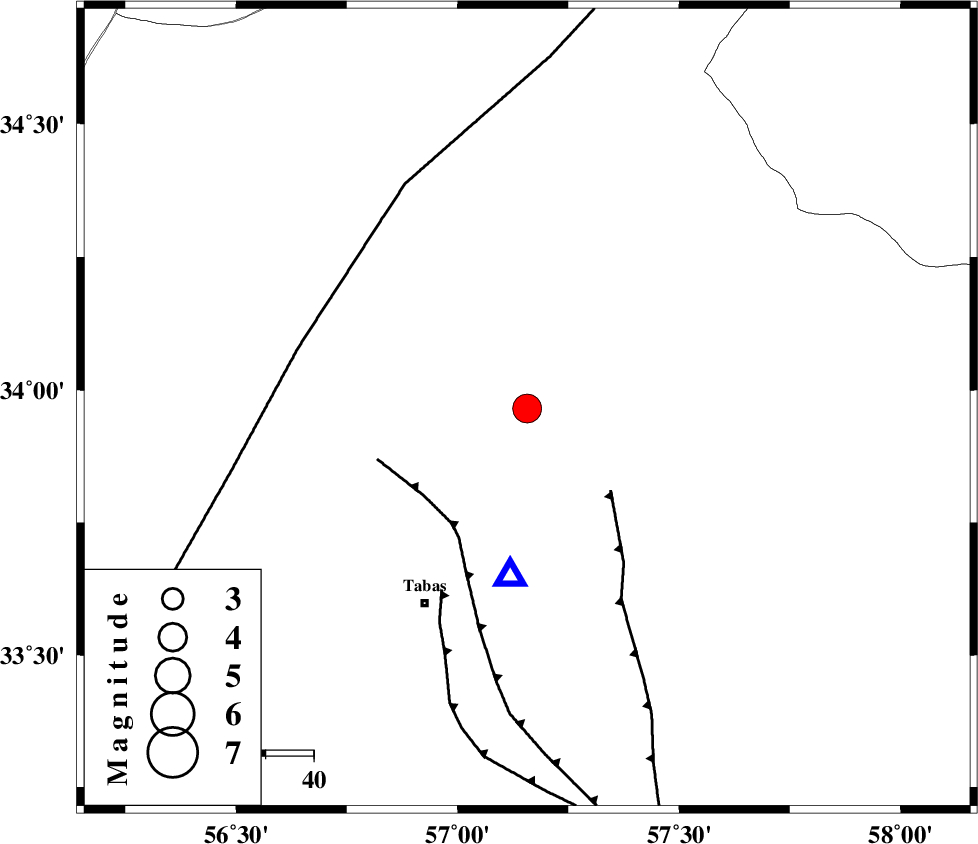

| Location | Lat:33.965 Lon: 57.157 |
| Region | Khorasan(center) Province, 46 km North-East of Tabas |
Nearest Cities |
|
| 19 km North West of Reqqeh, Khorasan(center) Province | |
| 19 km West of Qaniabad, Khorasan(center) Province | |
| 27 km North West of Boshravieh, Khorasan(center) Province | |
| 37 km North West of Arsak, Khorasan(center) Province | |
| 43 km North East of Jokhvah, Yazd Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 24 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 28 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 42 km | |
| Number of Phases | 27 |
| RMS | 0.3 |
| Number of Stations | 27 |
| Error in Latitude | >0.8 km |
| Error in Longitude | 0.8 km |
| Error in Depth | 2.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176454 | IIEES SC | TABS | Z | 30 | 1 | 2022-12-13 14:58:42 | 2022-12-14 04:51:00 | n |
| 176455 | IIEES SC | KKHK | Z | 20 | 1 | 2022-12-13 14:58:59 | 2022-12-14 04:51:00 | n |
| 176456 | IIEES SC | BSRN | Z | 0.4 | 1 | 2022-12-13 14:59:20 | 2022-12-14 04:51:00 | n |
| 176457 | IIEES SC | SHRT | Z | 1 | 1 | 2022-12-13 14:59:21 | 2022-12-14 04:51:00 | n |
| 176458 | IIEES SC | YZKH | Z | 2 | 1 | 2022-12-13 14:59:21 | 2022-12-14 04:51:00 | n |
| 176459 | IIEES SC | JRKH | Z | 0.8 | 1 | 2022-12-13 14:59:29 | 2022-12-14 04:51:00 | n |
| 176460 | IIEES SC | MEH | Z | 0.2 | 1 | 2022-12-13 14:59:31 | 2022-12-14 04:51:00 | n |
| 176461 | IIEES SC | TAFT | Z | 0.5 | 1 | 2022-12-13 14:59:31 | 2022-12-14 04:51:00 | n |
| 176462 | IIEES SC | ABGH | Z | 1 | 1 | 2022-12-13 14:59:31 | 2022-12-14 04:51:00 | n |
| 176463 | IIEES SC | BJRD | Z | 0.1 | 1 | 2022-12-13 14:59:35 | 2022-12-14 04:51:00 | n |
| 176464 | IIEES SC | MRVT | Z | 0.1 | 1 | 2022-12-13 14:59:36 | 2022-12-14 04:51:00 | n |
| 176465 | IIEES SC | NASN | Z | 0.4 | 1 | 2022-12-13 14:59:36 | 2022-12-14 04:51:00 | n |
| 176466 | IIEES SC | KRBR | Z | 0.8 | 1 | 2022-12-13 14:59:40 | 2022-12-14 04:51:00 | n |
| 176467 | IIEES SC | GHVR | Z | 0.3 | 1 | 2022-12-13 14:59:52 | 2022-12-14 04:51:00 | n |
| 176468 | IIEES SC | KBAM | Z | 0.4 | 1 | 2022-12-13 14:59:52 | 2022-12-14 04:51:00 | n |
| 176469 | IIEES SC | GTMR | Z | 0.07 | 1 | 2022-12-13 15:00:20 | 2022-12-14 04:51:00 | n |
| 176470 | IIEES SC | HGHA | Z | 0.05 | 1 | 2022-12-13 15:00:21 | 2022-12-14 04:51:00 | n |
| 176471 | IIEES SC | SRVN | Z | 0.03 | 1 | 2022-12-13 15:00:34 | 2022-12-14 04:51:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | EPg | E | 2022-12-13 14:58:42 | 0.1 | y | 0 | 35 | 186 | ||
| IIEES SC | KKHK | Z | EPg | E | 2022-12-13 14:58:59 | -0.1 | y | 0 | 138 | 82 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-12-13 14:59:08 | -7.4 | n | 4 | 250 | 335 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-12-13 14:59:20 | 0 | y | 0 | 288 | 140 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-13 14:59:21 | 0.3 | y | 0 | 292 | 97 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-13 14:59:21 | -0.3 | y | 0 | 296 | 234 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-12-13 14:59:25 | 0.2 | y | 0 | 325 | 64 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-12-13 14:59:27 | 0.2 | y | 0 | 341 | 299 | ||
| IIEES SC | JRKH | Z | EPn | E | 2022-12-13 14:59:29 | -0.5 | y | 0 | 363 | 54 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-12-13 14:59:31 | 0.5 | y | 0 | 372 | 220 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-13 14:59:31 | 0 | y | 0 | 374 | 228 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-12-13 14:59:31 | 0.5 | y | 0 | 375 | 325 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-13 14:59:37 | 1.3 | n | 4 | 413 | 313 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-12-13 14:59:35 | -0.4 | y | 0 | 415 | 3 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-12-13 14:59:36 | 0.1 | y | 0 | 417 | 38 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-12-13 14:59:36 | 0 | y | 0 | 421 | 347 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-12-13 14:59:36 | -0.7 | y | 0 | 425 | 252 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-12-13 14:59:40 | 0.3 | y | 0 | 443 | 185 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-12-13 14:59:52 | -0.1 | y | 0 | 548 | 276 | ||
| IIEES SC | KBAM | Z | EPn | E | 2022-12-13 14:59:52 | -0.5 | y | 0 | 549 | 167 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2022-12-13 14:59:47 | -10.5 | n | 4 | 592 | 145 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-12-13 15:00:03 | 1.4 | n | 4 | 617 | 238 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-12-13 15:00:16 | -0.2 | y | 0 | 745 | 212 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-12-13 15:00:20 | 0.4 | y | 0 | 768 | 258 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-12-13 15:00:21 | 0 | y | 0 | 779 | 283 | ||
| IIEES SC | SRVN | Z | EPn | E | 2022-12-13 15:00:34 | -0.1 | y | 0 | 884 | 145 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-12-13 15:00:37 | 0 | y | 0 | 909 | 278 | ||
