Magnitude |
:3.3 |
| Date & Time (UTC) | 2022-12-17 20:52:12.1 |
| Date & Time (Local) | 1401/9/27 00:22:12.1 |
| Location | Lat:33.933 Lon: 57.204 |
| Region | Khorasan(center) Province, 45 km North-East of Tabas |
Nearest Cities |
|
| 14 km North of Reqqeh, Khorasan(center) Province | |
| 18 km South West of Qaniabad, Khorasan(center) Province | |
| 22 km North West of Boshravieh, Khorasan(center) Province | |
| 31 km North West of Arsak, Khorasan(center) Province | |
| 45 km North East of Jokhvah, Yazd Province | |
| Depth | 10 km |
| Agency | |

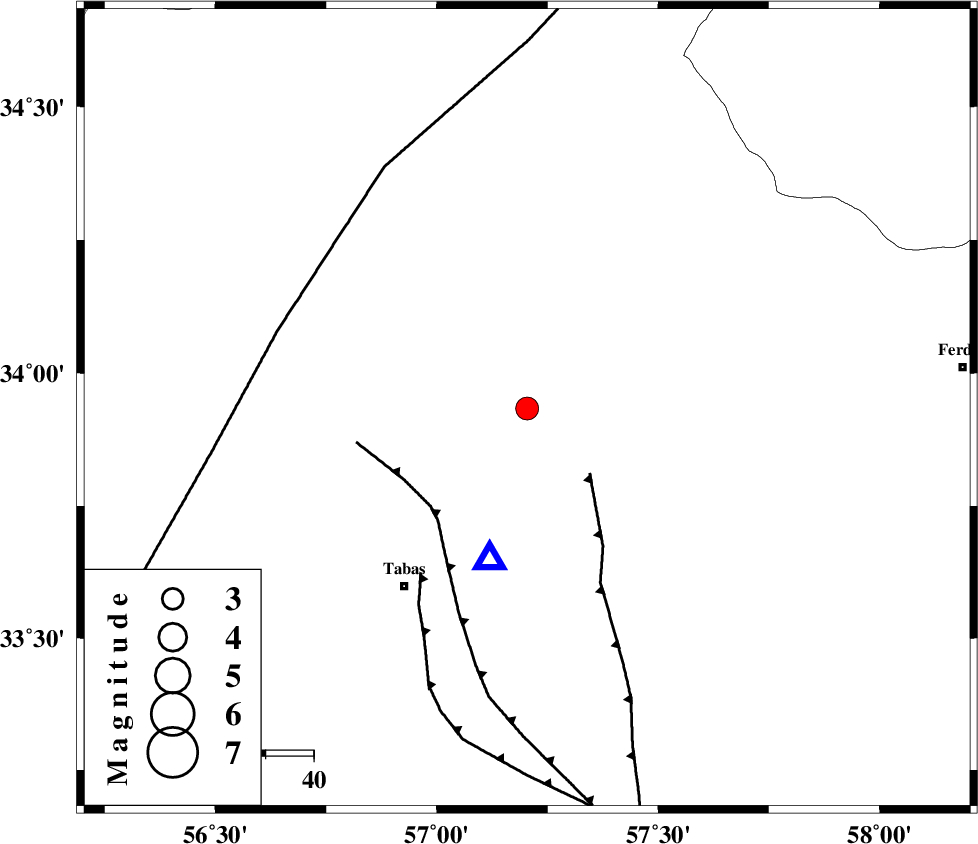

Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 19 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 29 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 41 km | |
| Number of Phases | 12 |
| RMS | 0.8 |
| Number of Stations | 12 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176607 | IIEES SC | TABS | Z | 7 | 1 | 2022-12-17 20:52:17 | 2022-12-18 09:02:00 | n |
| 176608 | IIEES SC | KKHK | Z | 4 | 1 | 2022-12-17 20:52:33 | 2022-12-18 09:02:00 | n |
| 176609 | IIEES SC | BSRN | Z | 0.09 | 1 | 2022-12-17 20:52:56 | 2022-12-18 09:02:00 | n |
| 176610 | IIEES SC | SHRT | Z | 0.2 | 1 | 2022-12-17 20:52:57 | 2022-12-18 09:02:00 | n |
| 176611 | IIEES SC | YZKH | Z | 0.3 | 1 | 2022-12-17 20:52:56 | 2022-12-18 09:02:00 | n |
| 176612 | IIEES SC | TAFT | Z | 0.1 | 1 | 2022-12-17 20:53:07 | 2022-12-18 09:02:00 | n |
| 176613 | IIEES SC | ABGH | Z | 0.2 | 1 | 2022-12-17 20:53:07 | 2022-12-18 09:02:00 | n |
| 176614 | IIEES SC | MRVT | Z | 0.03 | 1 | 2022-12-17 20:53:12 | 2022-12-18 09:02:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | EPg | E | 2022-12-17 20:52:17 | -0.9 | y | 0 | 32 | 194 | ||
| IIEES SC | KKHK | Z | EPg | E | 2022-12-17 20:52:33 | -1.1 | y | 0 | 134 | 80 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-12-17 20:52:44 | -7.3 | n | 4 | 255 | 335 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-12-17 20:52:56 | 0.9 | y | 0 | 283 | 141 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-17 20:52:57 | 1 | y | 0 | 288 | 96 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-17 20:52:56 | -0.7 | y | 0 | 298 | 235 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-12-17 20:53:03 | 0.3 | y | 0 | 346 | 299 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-17 20:53:07 | 0.5 | y | 0 | 375 | 229 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-12-17 20:53:07 | -0.2 | y | 0 | 380 | 325 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-12-17 20:53:11 | -0.5 | y | 0 | 417 | 37 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-17 20:53:13 | 1.2 | y | 0 | 419 | 313 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-12-17 20:53:12 | -0.3 | y | 0 | 426 | 346 | ||
