Magnitude |
:3.9 |
| Date & Time (UTC) | 2022-12-21 09:02:20.1 |
| Date & Time (Local) | 1401/9/30 12:32:20.1 |

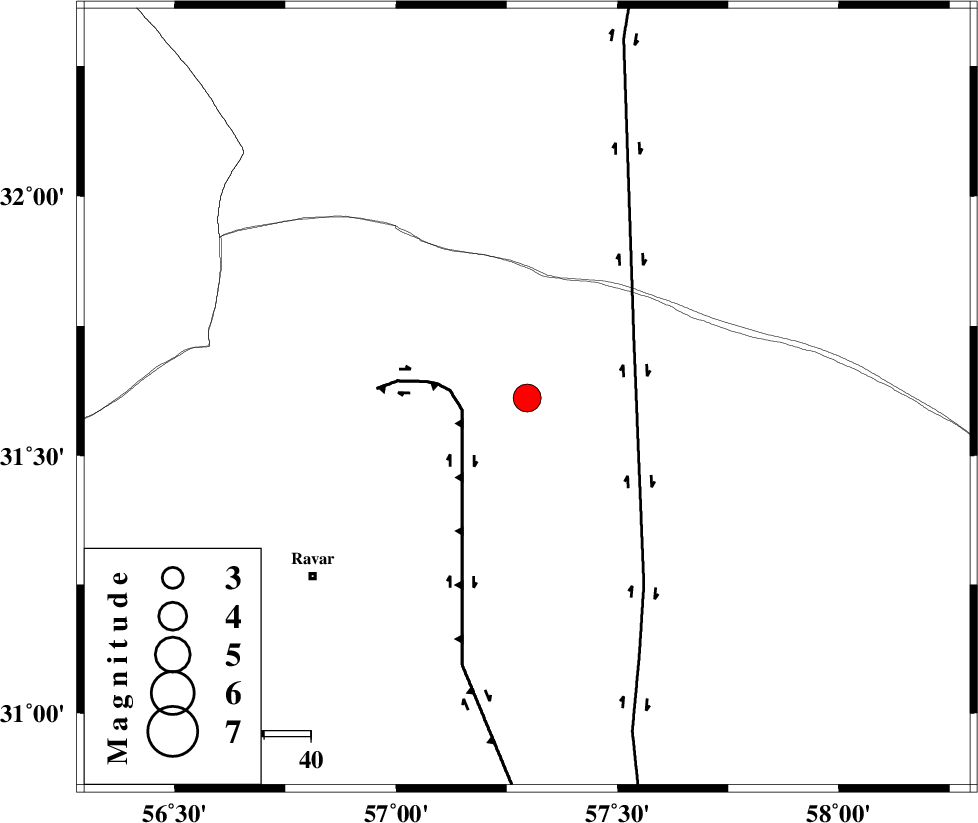

| Location | Lat:31.611 Lon: 57.296 |
| Region | Kerman Province, 60 km North-East of Ravar |
Nearest Cities |
|
| 57 km North East of Dehali, Kerman Province | |
| 60 km North East of Ravar, Kerman Province | |
| 62 km South West of Hoz-e qorban, Yazd Province | |
| 92 km North East of Ahmadi, Kerman Province | |
| 93 km North East of Dasht-e khak, Kerman Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 14 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 26 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 99 km | |
| Number of Phases | 24 |
| RMS | 0.4 |
| Number of Stations | 24 |
| Error in Latitude | >0.9 km |
| Error in Longitude | 0.9 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176802 | IIEES SC | BSRN | Z | 2 | 1 | 2022-12-21 09:02:49 | 2022-12-21 10:48:00 | n |
| 176803 | IIEES SC | BSRN | Z | 2 | 1 | 2022-12-21 09:03:11 | 2022-12-21 10:48:00 | n |
| 176804 | IIEES SC | KRBR | Z | 4 | 1 | 2022-12-21 09:02:51 | 2022-12-21 10:48:00 | n |
| 176805 | IIEES SC | KRBR | Z | 4 | 1 | 2022-12-21 09:03:13 | 2022-12-21 10:48:00 | n |
| 176806 | IIEES SC | TABS | Z | 3 | 1 | 2022-12-21 09:02:56 | 2022-12-21 10:48:00 | n |
| 176807 | IIEES SC | MEH | Z | 0.6 | 1 | 2022-12-21 09:03:01 | 2022-12-21 10:48:00 | n |
| 176808 | IIEES SC | YZKH | Z | 1 | 1 | 2022-12-21 09:03:02 | 2022-12-21 10:48:00 | n |
| 176809 | IIEES SC | TAFT | Z | 1 | 1 | 2022-12-21 09:03:06 | 2022-12-21 10:48:00 | n |
| 176810 | IIEES SC | KKHK | Z | 1 | 1 | 2022-12-21 09:03:06 | 2022-12-21 10:48:00 | n |
| 176811 | IIEES SC | SHRT | Z | 0.2 | 1 | 2022-12-21 09:03:13 | 2022-12-21 10:48:00 | n |
| 176812 | IIEES SC | KLNJ | Z | 0.1 | 1 | 2022-12-21 09:03:36 | 2022-12-21 10:48:00 | n |
| 176813 | IIEES SC | GHVR | Z | 0.1 | 1 | 2022-12-21 09:03:48 | 2022-12-21 10:48:00 | n |
| 176814 | IIEES SC | BJRD | Z | 0.03 | 1 | 2022-12-21 09:03:51 | 2022-12-21 10:48:00 | n |
| 176815 | IIEES SC | SRVN | Z | 0.04 | 1 | 2022-12-21 09:03:53 | 2022-12-21 10:48:00 | n |
| 176816 | IIEES SC | MRVT | Z | 0.04 | 1 | 2022-12-21 09:03:53 | 2022-12-21 10:48:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BSRN | Z | EPg | E | 2022-12-21 09:02:49 | 0.1 | y | 0 | 178 | 77 | ||
| IIEES SC | BSRN | Z | ESg | E | 2022-12-21 09:03:11 | 0 | y | 0 | 178 | 77 | ||
| IIEES SC | KRBR | Z | EPg | E | 2022-12-21 09:02:51 | -0.1 | y | 0 | 188 | 196 | ||
| IIEES SC | KRBR | Z | ESg | E | 2022-12-21 09:03:13 | -0.1 | y | 0 | 188 | 196 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-12-21 09:02:56 | 0.1 | y | 0 | 227 | 356 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-12-21 09:03:01 | 0.8 | y | 0 | 256 | 265 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-21 09:03:02 | -0.2 | y | 0 | 270 | 289 | ||
| IIEES SC | KBAM | Z | EPn | E | 2022-12-21 09:03:02 | -2.5 | n | 4 | 296 | 158 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-21 09:03:06 | 0.7 | y | 0 | 297 | 272 | ||
| IIEES SC | KKHK | Z | EPn | E | 2022-12-21 09:03:06 | -0.7 | y | 0 | 307 | 24 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-21 09:03:13 | 0.2 | y | 0 | 360 | 51 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2022-12-21 09:03:15 | -2.7 | n | 4 | 400 | 124 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-12-21 09:03:33 | 9.9 | n | 4 | 443 | 287 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-12-21 09:03:35 | 5.3 | n | 4 | 494 | 35 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-12-21 09:03:34 | -0.4 | y | 0 | 531 | 324 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-12-21 09:03:36 | -0.6 | y | 0 | 547 | 263 | ||
| IIEES SC | JRKH | Z | EPn | E | 2022-12-21 09:03:39 | 2.4 | n | 4 | 554 | 31 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-12-21 09:03:41 | 3.4 | n | 4 | 556 | 228 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-12-21 09:03:45 | 0.7 | y | 0 | 613 | 338 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-21 09:03:46 | -0.7 | y | 0 | 630 | 329 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-12-21 09:03:48 | -0.2 | y | 0 | 649 | 299 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-12-21 09:03:51 | -0.9 | y | 0 | 676 | 1 | ||
| IIEES SC | SRVN | Z | EPn | E | 2022-12-21 09:03:53 | 0.3 | y | 0 | 680 | 133 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-12-21 09:03:53 | 0.4 | y | 0 | 680 | 351 | ||
