Magnitude |
:4.8 |
| Date & Time (UTC) | 2022-12-22 13:29:43.3 |
| Date & Time (Local) | 1401/10/1 16:59:43.3 |

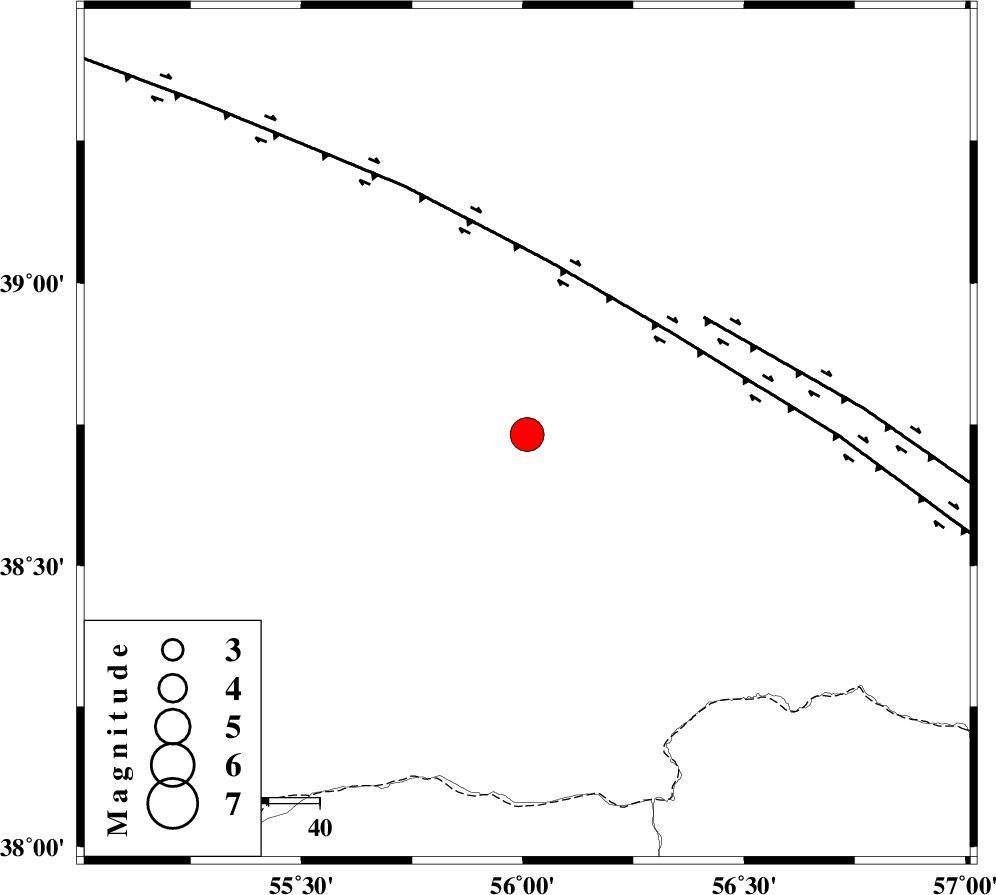

| Location | Lat:38.732 Lon: 56.01 |
| Region | Turkmenistan |
Nearest Cities |
|
| 87 km North West of Yekehsoud-e paeen, Khorasan(north) Province | |
| 92 km North of Moravehtappeh, Golestan Province | |
| 93 km North West of Qazanqayeh, Golestan Province | |
| 96 km North East of Karand, Golestan Province | |
| 114 km North West of Garmab, Khorasan(north) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MAIN_KOPEHDAGH_F1 (Length: 318 km) , Distance to epicenter: 34 km | |
| MAIN_KOPEHDAGH_F2 (Length: 131 km) , Distance to epicenter: 42 km | |
| MAIN_KOPEHDAGH_F3 (Length: 96 km) , Distance to epicenter: 148 km | |
| Number of Phases | 25 |
| RMS | 0.5 |
| Number of Stations | 25 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176833 | IIEES SC | BJRD | Z | 20 | 1 | 2022-12-22 13:30:10 | 2022-12-24 05:32:00 | n |
| 176834 | IIEES SC | ABGH | Z | 10 | 1 | 2022-12-22 13:30:21 | 2022-12-24 05:32:00 | n |
| 176835 | IIEES SC | GLO | Z | 10 | 1 | 2022-12-22 13:30:30 | 2022-12-24 05:32:00 | n |
| 176836 | IIEES SC | KAGH | Z | 2 | 1 | 2022-12-22 13:30:40 | 2022-12-24 05:32:00 | n |
| 176837 | IIEES SC | JRKH | Z | 5 | 1 | 2022-12-22 13:30:52 | 2022-12-24 05:32:00 | n |
| 176838 | IIEES SC | TBJM | Z | 2 | 1 | 2022-12-22 13:30:58 | 2022-12-24 05:32:00 | n |
| 176839 | IIEES SC | KKHK | Z | 1 | 1 | 2022-12-22 13:31:00 | 2022-12-24 05:32:00 | n |
| 176840 | IIEES SC | TABS | Z | 0.7 | 1 | 2022-12-22 13:31:03 | 2022-12-24 05:32:00 | n |
| 176841 | IIEES SC | GHVR | Z | 0.3 | 1 | 2022-12-22 13:31:10 | 2022-12-24 05:32:00 | n |
| 176842 | IIEES SC | SHRT | Z | 0.5 | 1 | 2022-12-22 13:31:15 | 2022-12-24 05:32:00 | n |
| 176843 | IIEES SC | GRMI | Z | 0.1 | 1 | 2022-12-22 13:31:18 | 2022-12-24 05:32:00 | n |
| 176844 | IIEES SC | YZKH | Z | 0.2 | 1 | 2022-12-22 13:31:20 | 2022-12-24 05:32:00 | n |
| 176845 | IIEES SC | NASN | Z | 0.1 | 1 | 2022-12-22 13:31:21 | 2022-12-24 05:32:00 | n |
| 176846 | IIEES SC | TAFT | Z | 0.2 | 1 | 2022-12-22 13:31:30 | 2022-12-24 05:32:00 | n |
| 176847 | IIEES SC | BSRN | Z | 0.1 | 1 | 2022-12-22 13:31:31 | 2022-12-24 05:32:00 | n |
| 176848 | IIEES SC | AZR | Z | 0.3 | 1 | 2022-12-22 13:31:42 | 2022-12-24 05:32:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRVT | Z | EPg | E | 2022-12-22 13:30:03 | 0 | y | 0 | 119 | 177 | ||
| IIEES SC | BJRD | Z | EPg | E | 2022-12-22 13:30:10 | -0.3 | y | 0 | 168 | 133 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-12-22 13:30:21 | -0.2 | y | 0 | 246 | 206 | ||
| IIEES SC | QUCH | Z | EPn | E | 2022-12-22 13:30:27 | 0.5 | y | 0 | 287 | 131 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-12-22 13:30:23 | -5.5 | n | 4 | 302 | 180 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-22 13:30:30 | -0.4 | y | 0 | 313 | 218 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-12-22 13:30:40 | -0.4 | y | 0 | 401 | 120 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-12-22 13:30:41 | -0.4 | y | 0 | 407 | 207 | ||
| IIEES SC | JRKH | Z | EPn | E | 2022-12-22 13:30:52 | -0.3 | y | 0 | 496 | 129 | ||
| IIEES SC | SRKH | Z | EPn | E | 2022-12-22 13:30:56 | 0.8 | y | 0 | 515 | 118 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-12-22 13:30:58 | -0.2 | y | 0 | 544 | 135 | ||
| IIEES SC | KKHK | Z | EPn | E | 2022-12-22 13:31:00 | -0.5 | y | 0 | 562 | 155 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-12-22 13:31:03 | 0.6 | y | 0 | 573 | 170 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-12-22 13:31:03 | -0.1 | y | 0 | 580 | 250 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-12-22 13:31:10 | 0.2 | y | 0 | 636 | 222 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-22 13:31:15 | -0.6 | y | 0 | 683 | 146 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-12-22 13:31:09 | -6.7 | n | 4 | 685 | 251 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-12-22 13:31:18 | -0.8 | y | 0 | 705 | 271 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-22 13:31:20 | 0.5 | y | 0 | 715 | 190 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-12-22 13:31:21 | 0.8 | y | 0 | 719 | 204 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-22 13:31:30 | 0.7 | y | 0 | 795 | 192 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-12-22 13:31:31 | 0.3 | y | 0 | 802 | 159 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-12-22 13:31:34 | 0.4 | y | 0 | 824 | 189 | ||
| IIEES SC | AZR | Z | EPn | E | 2022-12-22 13:31:42 | 0.7 | y | 0 | 886 | 262 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-12-22 13:31:45 | 2.7 | n | 4 | 896 | 270 | ||
