Magnitude |
:4 |
| Date & Time (UTC) | 2022-12-23 09:49:47.0 |
| Date & Time (Local) | 1401/10/2 13:19:47.0 |

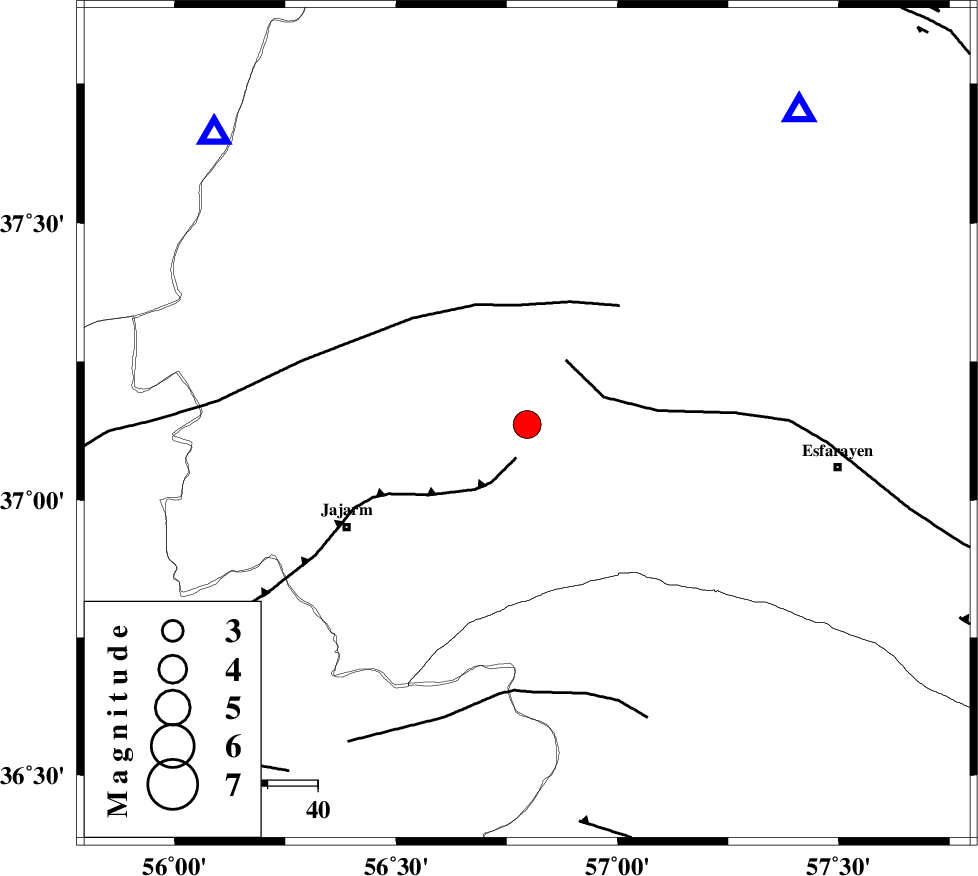

| Location | Lat:37.136 Lon: 56.796 |
| Region | Khorasan(north) Province, 48 km South-West of Ashkhaneh |
Nearest Cities |
|
| 24 km South of Shogan, Khorasan(north) Province | |
| 35 km North West of Cheharborj, Khorasan(north) Province | |
| 38 km North of Farashiyan, Khorasan(center) Province | |
| 42 km North East of Jajarm, Khorasan(north) Province | |
| 44 km North West of Zarqabad, Khorasan(north) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| JAJARAM_F (Length: 77 km) , Distance to epicenter: 7 km | |
| ESFARAYEN_F (Length: 111 km) , Distance to epicenter: 15 km | |
| ROBATE_QARABIL_F (Length: 168 km) , Distance to epicenter: 24 km | |
| Number of Phases | 24 |
| RMS | 0.4 |
| Number of Stations | 24 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176893 | IIEES SC | QUCH | Z | 10 | 1 | 2022-12-23 09:50:12 | 2022-12-24 09:31:00 | n |
| 176894 | IIEES SC | JRKH | Z | 0.6 | 1 | 2022-12-23 09:50:38 | 2022-12-24 09:31:00 | n |
| 176895 | IIEES SC | KKHK | Z | 0.8 | 1 | 2022-12-23 09:50:41 | 2022-12-24 09:31:00 | n |
| 176896 | IIEES SC | TBJM | Z | 0.4 | 1 | 2022-12-23 09:50:42 | 2022-12-24 09:31:00 | n |
| 176897 | IIEES SC | TABS | Z | 0.6 | 1 | 2022-12-23 09:50:43 | 2022-12-24 09:31:00 | n |
| 176898 | IIEES SC | SHRT | Z | 0.1 | 1 | 2022-12-23 09:50:57 | 2022-12-24 09:31:00 | n |
| 176899 | IIEES SC | YZKH | Z | 0.2 | 1 | 2022-12-23 09:51:04 | 2022-12-24 09:31:00 | n |
| 176900 | IIEES SC | GHVR | Z | 0.2 | 1 | 2022-12-23 09:51:06 | 2022-12-24 09:31:00 | n |
| 176901 | IIEES SC | NASN | Z | 0.06 | 1 | 2022-12-23 09:51:09 | 2022-12-24 09:31:00 | n |
| 176902 | IIEES SC | BSRN | Z | 0.06 | 1 | 2022-12-23 09:51:11 | 2022-12-24 09:31:00 | n |
| 176903 | IIEES SC | GIDE | Z | 0.02 | 1 | 2022-12-23 09:51:11 | 2022-12-24 09:31:00 | n |
| 176904 | IIEES SC | TAFT | Z | 0.07 | 1 | 2022-12-23 09:51:15 | 2022-12-24 09:31:00 | n |
| 176905 | IIEES SC | GRMI | Z | 0.06 | 1 | 2022-12-23 09:51:34 | 2022-12-24 09:31:00 | n |
| 176906 | IIEES SC | KLNJ | Z | 0.03 | 1 | 2022-12-23 09:51:38 | 2022-12-24 09:31:00 | n |
| 176907 | IIEES SC | GTMR | Z | 0.03 | 1 | 2022-12-23 09:51:43 | 2022-12-24 09:31:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | BJRD | Z | EPg | E | 2022-12-23 09:50:01 | -0.1 | y | 0 | 83 | 41 | ||
| IIEES SC | MRVT | Z | EPg | E | 2022-12-23 09:50:02 | 0.9 | y | 0 | 85 | 313 | ||
| IIEES SC | SHRO | Z | EPg | E | 2022-12-23 09:50:05 | -5.4 | n | 4 | 143 | 209 | ||
| IIEES SC | QUCH | Z | EPg | E | 2022-12-23 09:50:12 | 0.5 | y | 0 | 149 | 94 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-23 09:50:28 | -0.2 | y | 0 | 274 | 255 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-12-23 09:50:29 | -0.2 | y | 0 | 282 | 94 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-12-23 09:50:35 | 0.8 | y | 0 | 318 | 234 | ||
| IIEES SC | JRKH | Z | EPn | E | 2022-12-23 09:50:38 | 0.2 | y | 0 | 346 | 113 | ||
| IIEES SC | KKHK | Z | EPn | E | 2022-12-23 09:50:41 | 0.2 | y | 0 | 372 | 153 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-12-23 09:50:42 | 0.6 | y | 0 | 379 | 123 | ||
| IIEES SC | TABS | Z | EPn | E | 2022-12-23 09:50:43 | 0.4 | y | 0 | 388 | 176 | ||
| IIEES SC | SRKH | Z | EPn | E | 2022-12-23 09:50:44 | 0.4 | y | 0 | 394 | 100 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-23 09:50:57 | 0 | y | 0 | 501 | 141 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-23 09:51:04 | -0.6 | y | 0 | 564 | 201 | ||
| IIEES SC | GHVR | Z | EPn | E | 2022-12-23 09:51:06 | -0.7 | y | 0 | 582 | 240 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-12-23 09:51:09 | -0.3 | y | 0 | 603 | 217 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-12-23 09:51:11 | 0 | y | 0 | 612 | 160 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-12-23 09:51:11 | -0.5 | y | 0 | 621 | 268 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-23 09:51:15 | -0.1 | y | 0 | 647 | 202 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2022-12-23 09:51:21 | -4.1 | n | 4 | 725 | 266 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-12-23 09:51:34 | -0.6 | y | 0 | 804 | 283 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-12-23 09:51:38 | -0.4 | y | 0 | 832 | 215 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-12-23 09:51:43 | 0.2 | y | 0 | 873 | 234 | ||
| IIEES SC | MRD | Z | EPn | E | 2022-12-23 09:52:01 | 3.2 | n | 4 | 991 | 280 | ||
