Magnitude |
:5.4 |
| Date & Time (UTC) | 2022-12-24 13:24:37.3 |
| Date & Time (Local) | 1401/10/3 16:54:37.3 |

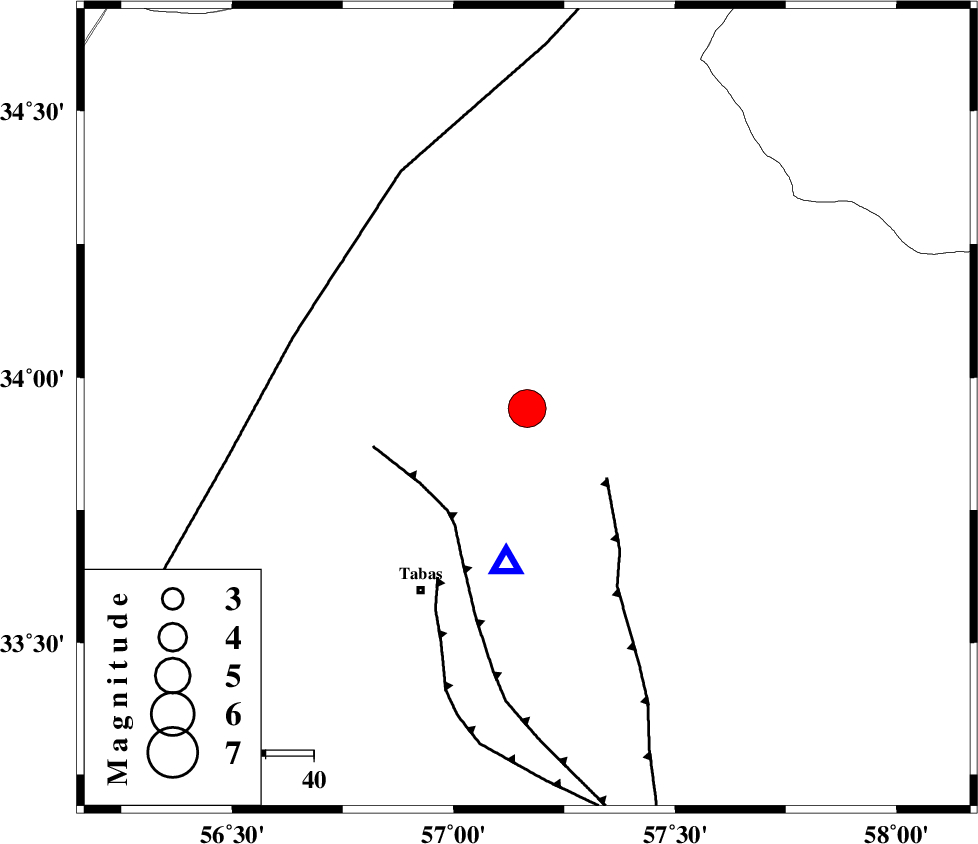

| Location | Lat:33.941 Lon: 57.166 |
| Region | Khorasan(center) Province, 44 km North-East of Tabas |
Nearest Cities |
|
| 16 km North of Reqqeh, Khorasan(center) Province | |
| 20 km West of Qaniabad, Khorasan(center) Province | |
| 25 km North West of Boshravieh, Khorasan(center) Province | |
| 34 km North West of Arsak, Khorasan(center) Province | |
| 42 km North East of Jokhvah, Yazd Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 22 km | |
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 27 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 40 km | |
| Number of Phases | 34 |
| RMS | 0.6 |
| Number of Stations | 34 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176932 | IIEES SC | TABS | Z | 1000 | 1 | 2022-12-24 13:24:42 | 2022-12-24 02:55:00 | n |
| 176933 | IIEES SC | KKHK | Z | 300 | 1 | 2022-12-24 13:24:59 | 2022-12-24 02:55:00 | n |
| 176934 | IIEES SC | SHRT | Z | 20 | 1 | 2022-12-24 13:25:21 | 2022-12-24 02:55:00 | n |
| 176935 | IIEES SC | YZKH | Z | 40 | 1 | 2022-12-24 13:25:21 | 2022-12-24 02:55:00 | n |
| 176936 | IIEES SC | JRKH | Z | 10 | 1 | 2022-12-24 13:25:30 | 2022-12-24 02:55:00 | n |
| 176937 | IIEES SC | TAFT | Z | 10 | 1 | 2022-12-24 13:25:31 | 2022-12-24 02:55:00 | n |
| 176938 | IIEES SC | NASN | Z | 10 | 1 | 2022-12-24 13:25:37 | 2022-12-24 02:55:00 | n |
| 176939 | IIEES SC | KHMZ | Z | 3 | 1 | 2022-12-24 13:26:08 | 2022-12-24 02:55:00 | n |
| 176940 | IIEES SC | GHIR | Z | 0.9 | 1 | 2022-12-24 13:26:18 | 2022-12-24 02:55:00 | n |
| 176941 | IIEES SC | HGHA | Z | 2 | 1 | 2022-12-24 13:26:22 | 2022-12-24 02:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | EPg | E | 2022-12-24 13:24:42 | -0.6 | y | 0 | 33 | 188 | ||
| IIEES SC | KKHK | Z | EPg | E | 2022-12-24 13:24:59 | -0.8 | y | 0 | 137 | 81 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-12-24 13:25:20 | -0.2 | y | 0 | 286 | 140 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-24 13:25:21 | 0.2 | y | 0 | 291 | 96 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-24 13:25:21 | -0.9 | y | 0 | 295 | 234 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-12-24 13:25:25 | -0.2 | y | 0 | 325 | 63 | ||
| IIEES SC | MSHD | Z | EPn | E | 2022-12-24 13:25:28 | 0.5 | y | 0 | 340 | 39 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-12-24 13:25:27 | -0.4 | y | 0 | 343 | 300 | ||
| IIEES SC | QUCH | Z | EPn | E | 2022-12-24 13:25:31 | 0.7 | y | 0 | 364 | 19 | ||
| IIEES SC | JRKH | Z | EPn | E | 2022-12-24 13:25:30 | 0 | y | 0 | 364 | 53 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-12-24 13:25:31 | 0.3 | y | 0 | 371 | 220 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-24 13:25:31 | -0.3 | y | 0 | 373 | 229 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-12-24 13:25:32 | 0 | y | 0 | 377 | 325 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-24 13:25:39 | 1.9 | y | 0 | 416 | 313 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-12-24 13:25:36 | -0.5 | y | 0 | 418 | 3 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-12-24 13:25:37 | -0.1 | y | 0 | 418 | 37 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-12-24 13:25:37 | -0.2 | y | 0 | 424 | 347 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-12-24 13:25:37 | -1.1 | y | 0 | 425 | 253 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-12-24 13:25:41 | 0.8 | y | 0 | 441 | 185 | ||
| IIEES SC | SRKH | Z | EPn | E | 2022-12-24 13:25:43 | 0.2 | y | 0 | 462 | 52 | ||
| IIEES SC | KBAM | Z | EPn | E | 2022-12-24 13:25:52 | -0.6 | y | 0 | 547 | 167 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-12-24 13:26:08 | 0.1 | y | 0 | 667 | 268 | ||
| IIEES SC | GHIR | Z | EPn | E | 2022-12-24 13:26:18 | 0.9 | y | 0 | 743 | 212 | ||
| IIEES SC | GIDE | Z | EPn | E | 2022-12-24 13:26:19 | 1.5 | y | 0 | 744 | 296 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-12-24 13:26:20 | 0 | y | 0 | 768 | 258 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-12-24 13:26:22 | -0.4 | y | 0 | 780 | 283 | ||
| IIEES SC | LMD1 | Z | EPn | E | 2022-12-24 13:26:29 | 1.3 | y | 0 | 826 | 208 | ||
| IIEES SC | SNGE | Z | EPn | E | 2022-12-24 13:26:39 | 0.5 | y | 0 | 911 | 278 | ||
| IIEES SC | KCHF | Z | EPn | E | 2022-12-24 13:26:42 | 0.8 | y | 0 | 935 | 272 | ||
| IIEES SC | GRMI | Z | EPn | E | 2022-12-24 13:26:48 | -0.4 | y | 0 | 992 | 303 | ||
| IIEES SC | DHR | Z | EPn | E | 2022-12-24 13:26:49 | 0.2 | y | 0 | 996 | 275 | ||
| IIEES SC | ILBA | Z | EPn | E | 2022-12-24 13:26:51 | -0.2 | y | 0 | 1016 | 268 | ||
| IIEES SC | SRSL | Z | EPn | E | 2022-12-24 13:27:02 | 0.5 | y | 0 | 1099 | 283 | ||
| IIEES SC | KIV | Z | EPn | E | 2022-12-24 13:28:14 | 1.4 | y | 0 | 1677 | 312 | ||
