Magnitude |
:3.5 |
| Date & Time (UTC) | 2022-12-24 23:08:39.8 |
| Date & Time (Local) | 1401/10/4 02:38:39.8 |

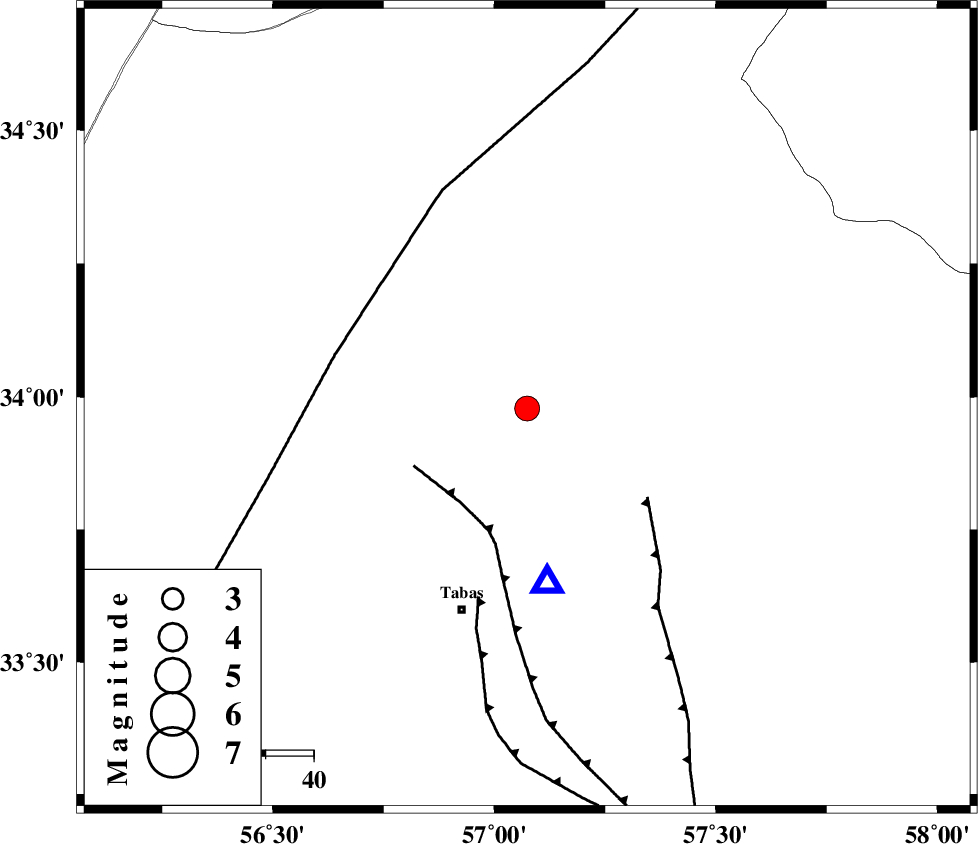

| Location | Lat:33.978 Lon: 57.074 |
| Region | Khorasan(center) Province, 44 km North-East of Tabas |
Nearest Cities |
|
| 25 km North West of Reqqeh, Khorasan(center) Province | |
| 26 km West of Qaniabad, Khorasan(center) Province | |
| 35 km North West of Boshravieh, Khorasan(center) Province | |
| 39 km North East of Jokhvah, Yazd Province | |
| 43 km North West of Arsak, Khorasan(center) Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 24 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 31 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 41 km | |
| Number of Phases | 26 |
| RMS | 0.3 |
| Number of Stations | 26 |
| Error in Latitude | >0.9 km |
| Error in Longitude | 0.9 km |
| Error in Depth | 2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 176978 | IIEES SC | TABS | Z | 8 | 1 | 2022-12-24 23:08:46 | 2022-12-25 06:25:00 | n |
| 176979 | IIEES SC | KKHK | Z | 4 | 1 | 2022-12-24 23:09:03 | 2022-12-25 06:25:00 | n |
| 176980 | IIEES SC | YZKH | Z | 0.3 | 1 | 2022-12-24 23:09:24 | 2022-12-25 06:25:00 | n |
| 176981 | IIEES SC | BSRN | Z | 0.1 | 1 | 2022-12-24 23:09:24 | 2022-12-25 06:25:00 | n |
| 176982 | IIEES SC | SHRT | Z | 0.2 | 1 | 2022-12-24 23:09:25 | 2022-12-25 06:25:00 | n |
| 176983 | IIEES SC | TBJM | Z | 0.6 | 1 | 2022-12-24 23:09:28 | 2022-12-25 06:25:00 | n |
| 176984 | IIEES SC | QUCH | Z | 0.4 | 1 | 2022-12-24 23:09:32 | 2022-12-25 06:25:00 | n |
| 176985 | IIEES SC | JRKH | Z | 0.1 | 1 | 2022-12-24 23:09:33 | 2022-12-25 06:25:00 | n |
| 176986 | IIEES SC | TAFT | Z | 0.1 | 1 | 2022-12-24 23:09:33 | 2022-12-25 06:25:00 | n |
| 176987 | IIEES SC | NASN | Z | 0.09 | 1 | 2022-12-24 23:09:39 | 2022-12-25 06:25:00 | n |
| 176988 | IIEES SC | MRVT | Z | 0.03 | 1 | 2022-12-24 23:09:40 | 2022-12-25 06:25:00 | n |
| 176989 | IIEES SC | KBAM | Z | 0.1 | 1 | 2022-12-24 23:09:56 | 2022-12-25 06:25:00 | n |
| 176990 | IIEES SC | KLNJ | Z | 0.04 | 1 | 2022-12-24 23:10:04 | 2022-12-25 06:25:00 | n |
| 176991 | IIEES SC | KHMZ | Z | 0.02 | 1 | 2022-12-24 23:10:09 | 2022-12-25 06:25:00 | n |
| 176992 | IIEES SC | GTMR | Z | 0.02 | 1 | 2022-12-24 23:10:21 | 2022-12-25 06:25:00 | n |
| 176993 | IIEES SC | HGHA | Z | 0.02 | 1 | 2022-12-24 23:10:24 | 2022-12-25 06:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | TABS | Z | EPg | E | 2022-12-24 23:08:46 | 0 | y | 0 | 37 | 173 | ||
| IIEES SC | KKHK | Z | EPg | E | 2022-12-24 23:09:03 | -0.1 | y | 0 | 145 | 83 | ||
| IIEES SC | SHRO | Z | EPn | E | 2022-12-24 23:09:13 | -4.9 | n | 4 | 245 | 337 | ||
| IIEES SC | YZKH | Z | EPn | E | 2022-12-24 23:09:24 | -0.1 | y | 0 | 291 | 233 | ||
| IIEES SC | BSRN | Z | EPn | E | 2022-12-24 23:09:24 | 0.1 | y | 0 | 294 | 139 | ||
| IIEES SC | SHRT | Z | EPn | E | 2022-12-24 23:09:25 | 0.1 | y | 0 | 300 | 97 | ||
| IIEES SC | TBJM | Z | EPn | E | 2022-12-24 23:09:28 | -0.6 | y | 0 | 331 | 64 | ||
| IIEES SC | ANJ | Z | EPn | E | 2022-12-24 23:09:28 | -0.3 | y | 0 | 333 | 300 | ||
| IIEES SC | QUCH | Z | EPn | E | 2022-12-24 23:09:32 | 0.1 | y | 0 | 362 | 20 | ||
| IIEES SC | JRKH | Z | EPn | E | 2022-12-24 23:09:33 | 0.3 | y | 0 | 368 | 54 | ||
| IIEES SC | MEH | Z | EPn | E | 2022-12-24 23:09:33 | 0.1 | y | 0 | 368 | 219 | ||
| IIEES SC | ABGH | Z | EPn | E | 2022-12-24 23:09:35 | 1.4 | y | 0 | 369 | 326 | ||
| IIEES SC | TAFT | Z | EPn | E | 2022-12-24 23:09:33 | -0.2 | y | 0 | 369 | 227 | ||
| IIEES SC | GLO | Z | EPn | E | 2022-12-24 23:09:38 | -0.3 | y | 0 | 407 | 313 | ||
| IIEES SC | BJRD | Z | EPn | E | 2022-12-24 23:09:39 | 0.3 | y | 0 | 414 | 4 | ||
| IIEES SC | NASN | Z | EPn | E | 2022-12-24 23:09:39 | -0.2 | y | 0 | 418 | 252 | ||
| IIEES SC | MRVT | Z | EPn | E | 2022-12-24 23:09:40 | 0.3 | y | 0 | 418 | 348 | ||
| IIEES SC | KAGH | Z | EPn | E | 2022-12-24 23:09:39 | -0.6 | y | 0 | 420 | 39 | ||
| IIEES SC | KRBR | Z | EPn | E | 2022-12-24 23:09:43 | 0.5 | y | 0 | 444 | 184 | ||
| IIEES SC | SRKH | Z | EPn | E | 2022-12-24 23:09:45 | 0.2 | y | 0 | 466 | 53 | ||
| IIEES SC | KBAM | Z | EPn | E | 2022-12-24 23:09:56 | -0.2 | y | 0 | 553 | 166 | ||
| IIEES SC | ZHSF | Z | EPn | E | 2022-12-24 23:09:55 | -7 | n | 4 | 597 | 144 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2022-12-24 23:10:04 | 0.3 | y | 0 | 612 | 237 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2022-12-24 23:10:09 | -0.1 | y | 0 | 658 | 268 | ||
| IIEES SC | GTMR | Z | EPn | E | 2022-12-24 23:10:21 | -0.7 | y | 0 | 761 | 257 | ||
| IIEES SC | HGHA | Z | EPn | E | 2022-12-24 23:10:24 | 0.7 | y | 0 | 771 | 283 | ||
