Map Region : lat:-  lon:-

  North
West   East
  South
Show Cities
Show Foreign Cities
Show Fault Mechanism
Show Province Boundaries
Show Stations
Map Title

Magnitude
 :3.3
Date & Time (UTC) 2023-01-17 05:05:51.7
Date & Time (Local) 1401/10/27  08:35:51.7

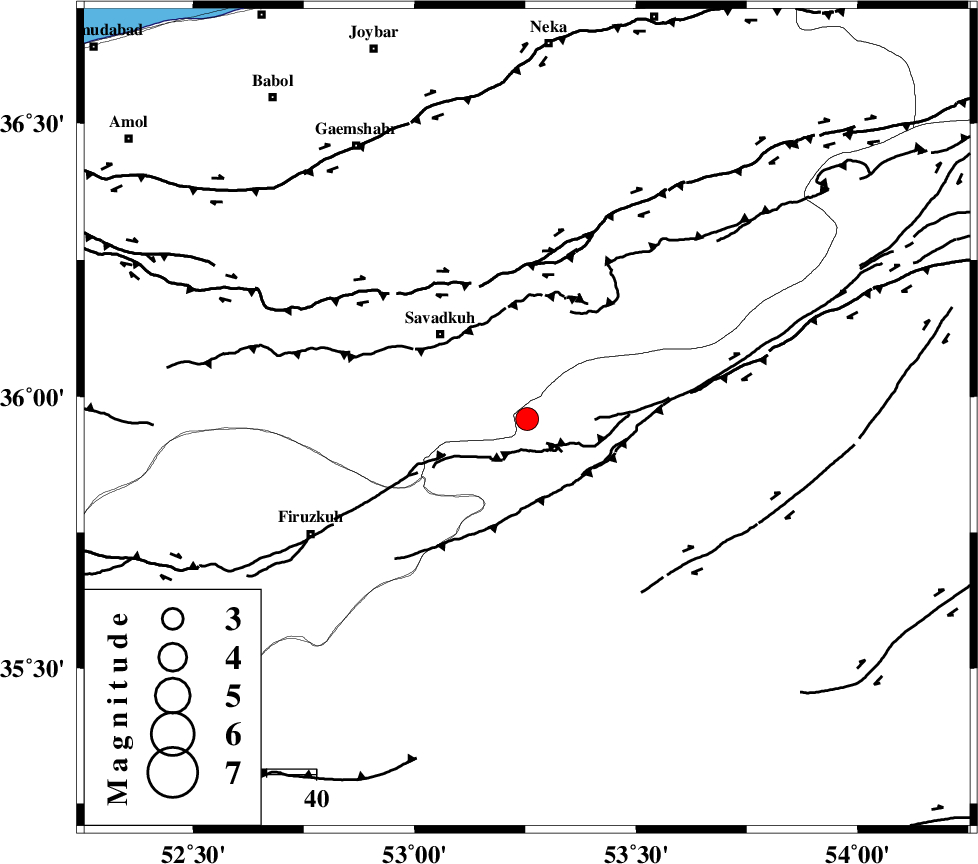

Location Lat:35.959 Lon: 53.254
Region Semnan Province, 25 km South-East of Pol-E-Sefid
Nearest Cities
8 km North of Chashem, Semnan Province
12 km South of Sangdeh, Mazandaran Province
23 km North of Shahmirzad, Semnan Province
23 km South East of Shurmast-e peyrudbar, Mazandaran Province
25 km South East of Pol-E-Sefid, Mazandaran Province
Depth 8 km
Agency
Faults within 150 km:
N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 29 km
ATARI_F (Length: 185 km) , Distance to epicenter: 30 km
DAMGHAN_F (Length: 95 km) , Distance to epicenter: 56 km
Number of Phases 13
RMS 0.6
Number of Stations 13
Error in Latitude >2.4 km
Error in Longitude 2.4 km
Error in Depth 10.8 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
177728IIEES SCGHVRZ 0.812023-01-17 05:06:302023-01-17 10:16:00n
177729IIEES SCGHVRZ 0.812023-01-17 05:06:592023-01-17 10:16:00n
177730IIEES SCMRVTZ 0.0612023-01-17 05:06:392023-01-17 10:16:00n
177731IIEES SCNASNZ 0.112023-01-17 05:06:442023-01-17 10:16:00n
177732IIEES SCKHMZZ 0.0612023-01-17 05:06:492023-01-17 10:16:00n
177733IIEES SCYZKHZ 0.0712023-01-17 05:06:522023-01-17 10:16:00n
177734IIEES SCZNJKZ 0.0312023-01-17 05:06:512023-01-17 10:16:00n
177735IIEES SCTABSZ 0.0612023-01-17 05:06:542023-01-17 10:16:00n
177736IIEES SCTAFTZ 0.0512023-01-17 05:06:582023-01-17 10:16:00n
177737IIEES SCGRMIZ 0.0212023-01-17 05:07:102023-01-17 10:16:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCGHVRZ EPn E2023-01-17 05:06:30-0.5y0246228
IIEES SCGHVRZ ES E2023-01-17 05:06:590.4y0246228
IIEES SCSHROZ EPn E2023-01-17 05:06:27-3.4n424989
IIEES SCMRVTZ EPn E2023-01-17 05:06:390.1y031653
IIEES SCGIDEZ EPn E2023-01-17 05:06:410.7y0326289
IIEES SCNASNZ EPn E2023-01-17 05:06:440.1y0353187
IIEES SCKHMZZ EPn E2023-01-17 05:06:491.1y0389231
IIEES SCYZKHZ EPn E2023-01-17 05:06:520.6y0415163
IIEES SCZNJKZ EPn E2023-01-17 05:06:51-0.5y0418281
IIEES SCTABSZ EPn E2023-01-17 05:06:54-0.4y0437126
IIEES SCTAFTZ EPn E2023-01-17 05:06:58-0.9y0477170
IIEES SCKKHKZ EPn E2023-01-17 05:07:04-1.9n4531112
IIEES SCGRMIZ EPn E2023-01-17 05:07:10-0.9y0570304
