Magnitude |
:3.4 |
| Date & Time (UTC) | 2023-01-20 14:12:01.6 |
| Date & Time (Local) | 1401/10/30 17:42:01.6 |

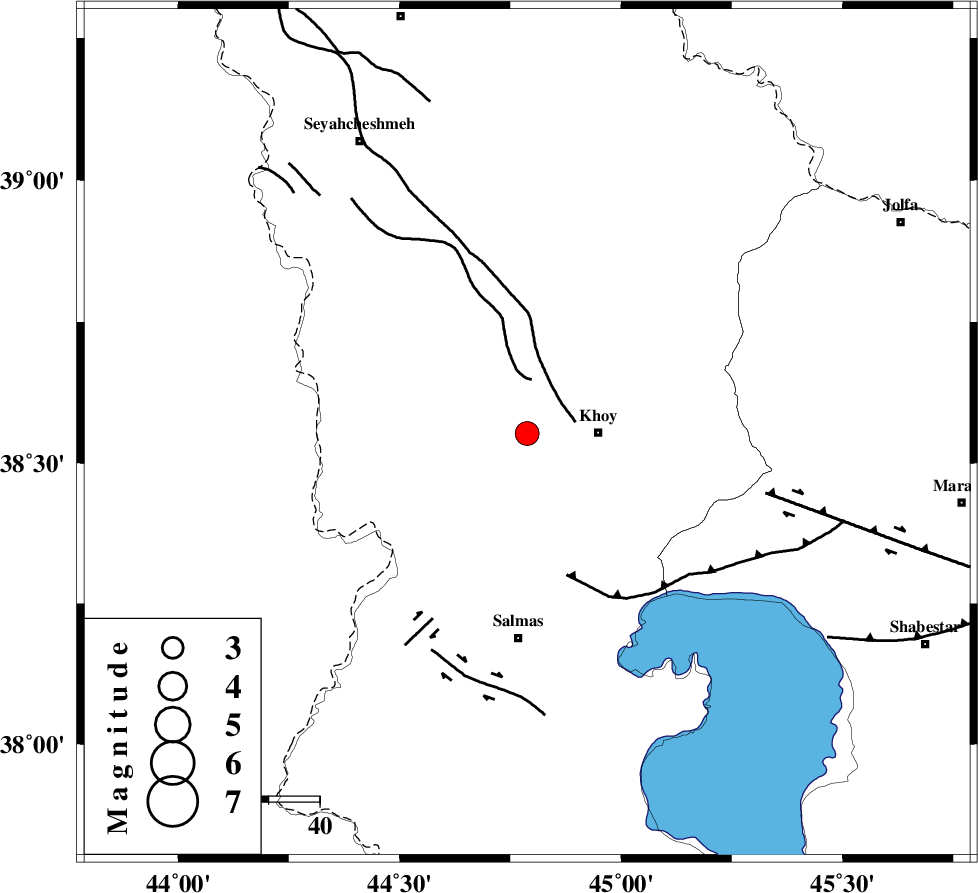

| Location | Lat:38.552 Lon: 44.788 |
| Region | Azarbaijan Gharbi Province, 14 km -West of Khoy |
Nearest Cities |
|
| 1 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 14 km West of Khoy, Azarbaijan Gharbi Province | |
| 16 km North West of Quruq, Azarbaijan Gharbi Province | |
| 18 km West of Dizaj, Azarbaijan Gharbi Province | |
| 21 km West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 10 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 29 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 41 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 11.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 177850 | IIEES SC | MRD | Z | 10 | 1 | 2023-01-20 14:12:15 | 2023-01-21 06:46:00 | n |
| 177851 | IIEES SC | MAKU | Z | 3 | 1 | 2023-01-20 14:12:16 | 2023-01-21 06:46:00 | n |
| 177852 | IIEES SC | GNI | Z | 2 | 1 | 2023-01-20 14:12:31 | 2023-01-21 06:46:00 | n |
| 177853 | IIEES SC | MAHB | Z | 0.4 | 1 | 2023-01-20 14:12:36 | 2023-01-21 06:46:00 | n |
| 177854 | IIEES SC | GURO | Z | 0.2 | 1 | 2023-01-20 14:12:39 | 2023-01-21 06:46:00 | n |
| 177855 | IIEES SC | SRSL | Z | 0.3 | 1 | 2023-01-20 14:12:43 | 2023-01-21 06:46:00 | n |
| 177856 | IIEES SC | GRMI | Z | 0.6 | 1 | 2023-01-20 14:12:43 | 2023-01-21 06:46:00 | n |
| 177857 | IIEES SC | ZNJK | Z | 0.06 | 1 | 2023-01-20 14:12:59 | 2023-01-21 06:46:00 | n |
| 177858 | IIEES SC | DHR | Z | 0.09 | 1 | 2023-01-20 14:13:05 | 2023-01-21 06:46:00 | n |
| 177859 | IIEES SC | ILBA | Z | 0.03 | 1 | 2023-01-20 14:13:18 | 2023-01-21 06:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-20 14:12:15 | -0.6 | y | 0 | 82 | 77 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-20 14:12:16 | -0.3 | y | 0 | 90 | 354 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-20 14:12:24 | -0.6 | y | 0 | 143 | 133 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-20 14:12:31 | 0.7 | y | 0 | 177 | 359 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-20 14:12:36 | 0.7 | y | 0 | 214 | 158 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-20 14:12:39 | -0.2 | y | 0 | 240 | 270 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-20 14:12:43 | 0.8 | y | 0 | 266 | 168 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-20 14:12:43 | 0.1 | y | 0 | 272 | 84 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-20 14:12:59 | -0.5 | y | 0 | 402 | 121 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-01-20 14:13:05 | 0 | y | 0 | 451 | 162 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-01-20 14:13:10 | 0.9 | y | 0 | 480 | 112 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-20 14:13:18 | -0.9 | y | 0 | 562 | 167 | ||
