Magnitude |
:3.6 |
| Date & Time (UTC) | 2023-01-28 23:27:22.1 |
| Date & Time (Local) | 1401/11/9 02:57:22.1 |

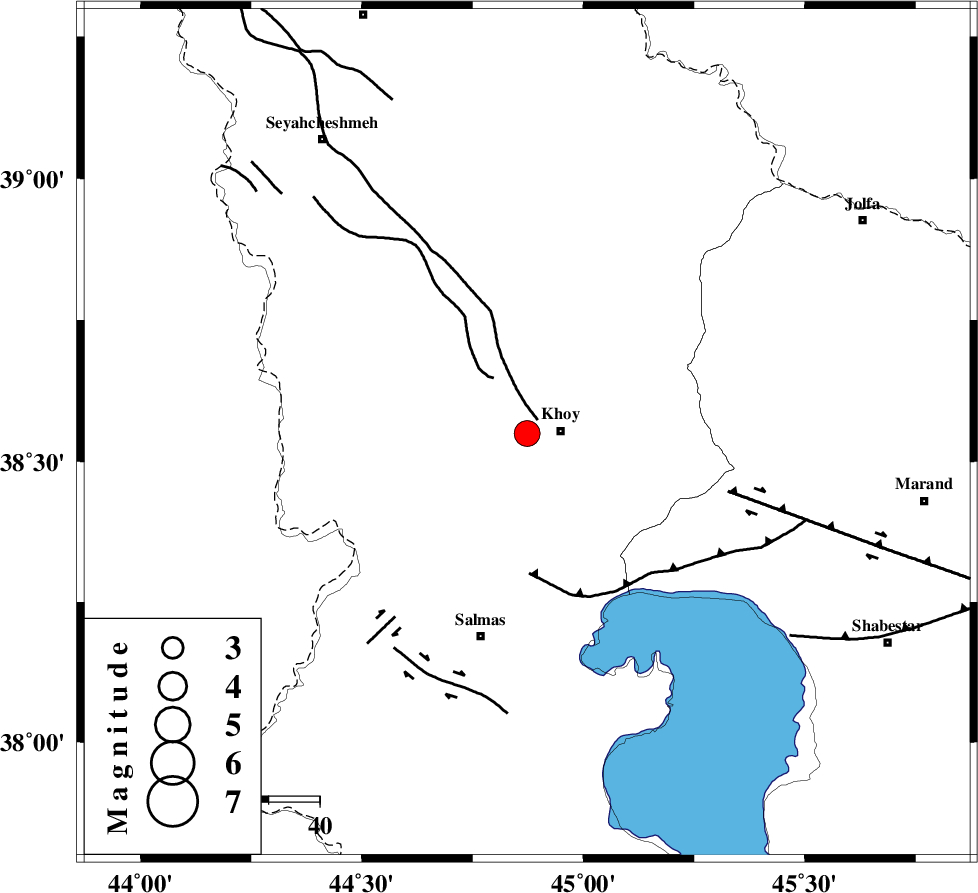

| Location | Lat:38.549 Lon: 44.873 |
| Region | Azarbaijan Gharbi Province, 7 km of Khoy |
Nearest Cities |
|
| 6 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 7 km of Khoy, Azarbaijan Gharbi Province | |
| 12 km North of Quruq, Azarbaijan Gharbi Province | |
| 13 km of Dizaj, Azarbaijan Gharbi Province | |
| 13 km West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 27 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 41 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >2.3 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178158 | IIEES SC | MRD | Z | 20 | 1 | 2023-01-28 23:27:35 | 2023-01-29 03:25:00 | n |
| 178159 | IIEES SC | MAKU | Z | 2 | 1 | 2023-01-28 23:27:36 | 2023-01-29 03:25:00 | n |
| 178160 | IIEES SC | GNI | Z | 3 | 1 | 2023-01-28 23:27:51 | 2023-01-29 03:25:00 | n |
| 178161 | IIEES SC | MAHB | Z | 0.8 | 1 | 2023-01-28 23:27:55 | 2023-01-29 03:25:00 | n |
| 178162 | IIEES SC | GURO | Z | 0.3 | 1 | 2023-01-28 23:28:01 | 2023-01-29 03:25:00 | n |
| 178163 | IIEES SC | SRSL | Z | 0.5 | 1 | 2023-01-28 23:28:03 | 2023-01-29 03:25:00 | n |
| 178164 | IIEES SC | GRMI | Z | 0.8 | 1 | 2023-01-28 23:28:03 | 2023-01-29 03:25:00 | n |
| 178165 | IIEES SC | DHR | Z | 0.1 | 1 | 2023-01-28 23:28:27 | 2023-01-29 03:25:00 | n |
| 178166 | IIEES SC | ILBA | Z | 0.05 | 1 | 2023-01-28 23:28:39 | 2023-01-29 03:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-28 23:27:35 | -0.1 | y | 0 | 74 | 76 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-28 23:27:36 | -1.1 | y | 0 | 91 | 350 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-28 23:27:44 | -0.5 | y | 0 | 137 | 135 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-28 23:27:51 | 0.6 | y | 0 | 178 | 356 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-28 23:27:55 | -0.9 | y | 0 | 211 | 160 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-28 23:28:01 | 0.1 | y | 0 | 248 | 270 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-28 23:28:03 | 0.4 | y | 0 | 264 | 169 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-28 23:28:03 | 0.4 | y | 0 | 264 | 84 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-28 23:28:15 | -4 | n | 4 | 396 | 122 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-01-28 23:28:25 | 0.1 | y | 0 | 442 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-01-28 23:28:27 | 1 | y | 0 | 448 | 162 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-28 23:28:39 | -0.2 | y | 0 | 560 | 168 | ||
