Magnitude |
:3.2 |
| Date & Time (UTC) | 2023-01-28 18:42:39.5 |
| Date & Time (Local) | 1401/11/8 22:12:39.5 |

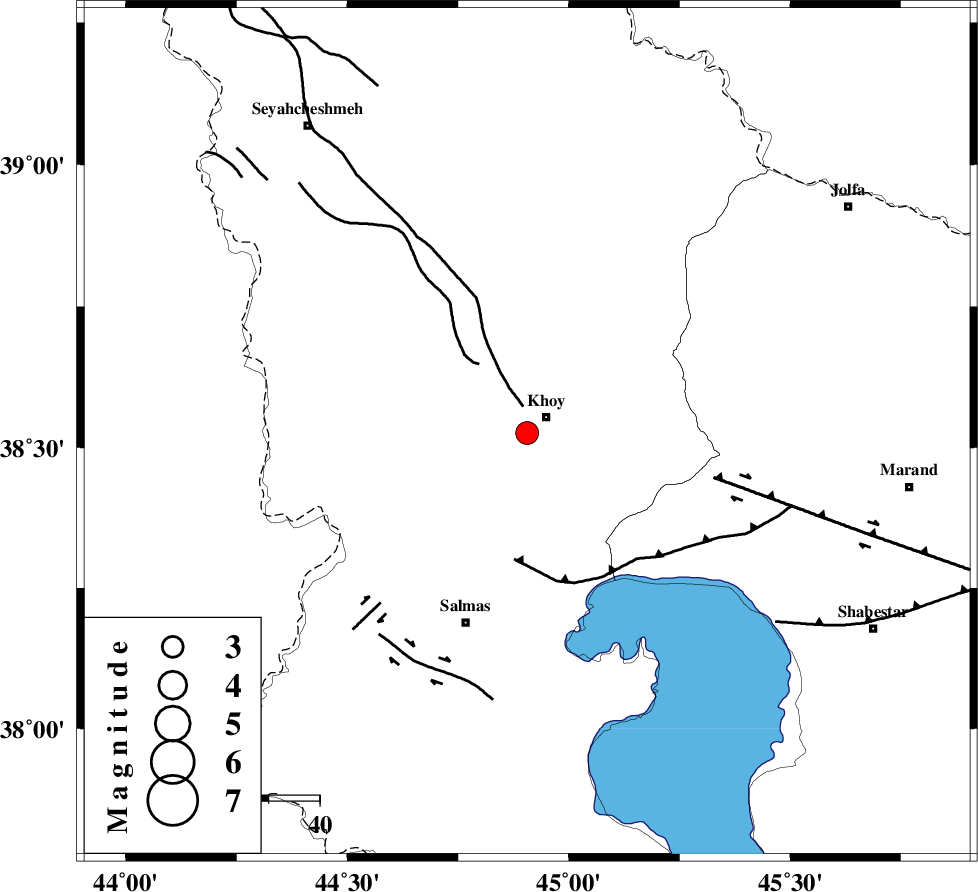

| Location | Lat:38.526 Lon: 44.906 |
| Region | Azarbaijan Gharbi Province, 5 km of Khoy |
Nearest Cities |
|
| 5 km of Khoy, Azarbaijan Gharbi Province | |
| 9 km North of Quruq, Azarbaijan Gharbi Province | |
| 10 km East of Beyk sofla, Azarbaijan Gharbi Province | |
| 11 km West of Saeedabad, Azarbaijan Gharbi Province | |
| 13 km North West of Dizaj diz, Azarbaijan Gharbi Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 5 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 25 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 38 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178249 | IIEES SC | MRD | Z | 4 | 1 | 2023-01-28 18:42:51 | 2023-01-29 07:01:00 | n |
| 178250 | IIEES SC | MRD | Z | 4 | 1 | 2023-01-28 18:43:02 | 2023-01-29 07:01:00 | n |
| 178251 | IIEES SC | GNI | Z | 0.9 | 1 | 2023-01-28 18:43:09 | 2023-01-29 07:01:00 | n |
| 178252 | IIEES SC | GNI | Z | 0.9 | 1 | 2023-01-28 18:43:31 | 2023-01-29 07:01:00 | n |
| 178253 | IIEES SC | MAHB | Z | 0.3 | 1 | 2023-01-28 18:43:13 | 2023-01-29 07:01:00 | n |
| 178254 | IIEES SC | SRSL | Z | 0.1 | 1 | 2023-01-28 18:43:20 | 2023-01-29 07:01:00 | n |
| 178255 | IIEES SC | GRMI | Z | 0.2 | 1 | 2023-01-28 18:43:20 | 2023-01-29 07:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-28 18:42:51 | -0.5 | y | 0 | 72 | 73 | ||
| IIEES SC | MRD | Z | ESg | E | 2023-01-28 18:43:02 | 0.6 | y | 0 | 72 | 73 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-28 18:42:54 | -1.1 | y | 0 | 94 | 348 | ||
| IIEES SC | MAKU | Z | ESg | E | 2023-01-28 18:43:06 | -1 | y | 0 | 94 | 348 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-28 18:43:01 | -0.2 | y | 0 | 134 | 135 | ||
| IIEES SC | AZR | Z | ESg | E | 2023-01-28 18:43:18 | -0.2 | y | 0 | 134 | 135 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-28 18:43:09 | 0.1 | y | 0 | 181 | 355 | ||
| IIEES SC | GNI | Z | ESg | E | 2023-01-28 18:43:31 | 0.2 | y | 0 | 181 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-28 18:43:13 | 0.3 | y | 0 | 208 | 160 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-28 18:43:19 | 0.3 | y | 0 | 250 | 271 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-28 18:43:20 | -0.3 | y | 0 | 261 | 170 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-28 18:43:20 | -0.1 | y | 0 | 262 | 83 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-28 18:43:28 | 0.3 | y | 0 | 324 | 340 | ||
