Magnitude |
:3 |
| Date & Time (UTC) | 2023-01-28 18:44:03.2 |
| Date & Time (Local) | 1401/11/8 22:14:03.2 |

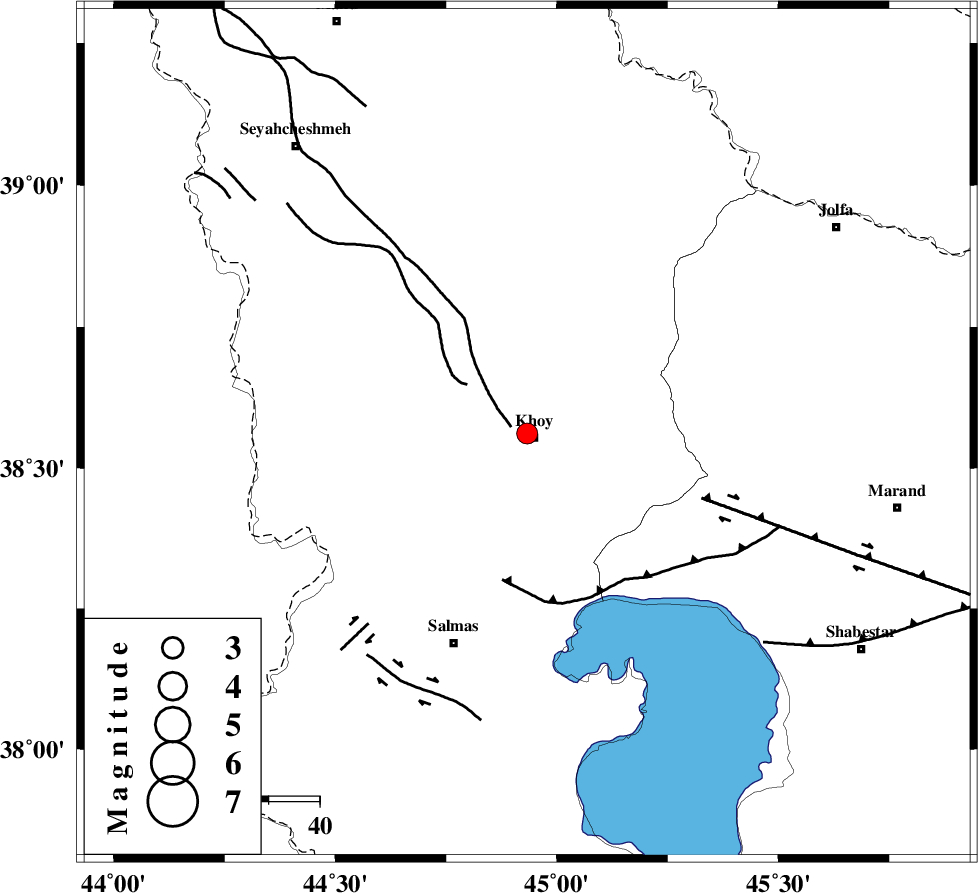

| Location | Lat:38.561 Lon: 44.933 |
| Region | Azarbaijan Gharbi Province, 2 km of Khoy |
Nearest Cities |
|
| 2 km North of Khoy, Azarbaijan Gharbi Province | |
| 8 km of Saeedabad, Azarbaijan Gharbi Province | |
| 10 km of Dizaj, Azarbaijan Gharbi Province | |
| 12 km North East of Beyk sofla, Azarbaijan Gharbi Province | |
| 13 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 9 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 29 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 37 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 12 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178256 | IIEES SC | MRD | Z | 4 | 1 | 2023-01-28 18:44:15 | 2023-01-29 07:19:00 | n |
| 178257 | IIEES SC | MRD | Z | 4 | 1 | 2023-01-28 18:44:25 | 2023-01-29 07:19:00 | n |
| 178258 | IIEES SC | AZR | Z | 3 | 1 | 2023-01-28 18:44:26 | 2023-01-29 07:19:00 | n |
| 178259 | IIEES SC | GNI | Z | 0.5 | 1 | 2023-01-28 18:44:31 | 2023-01-29 07:19:00 | n |
| 178260 | IIEES SC | MAHB | Z | 0.1 | 1 | 2023-01-28 18:44:37 | 2023-01-29 07:19:00 | n |
| 178261 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-01-28 18:44:43 | 2023-01-29 07:19:00 | n |
| 178262 | IIEES SC | SRSL | Z | 0.07 | 1 | 2023-01-28 18:44:44 | 2023-01-29 07:19:00 | n |
| 178263 | IIEES SC | BGD | Z | 0.02 | 1 | 2023-01-28 18:44:52 | 2023-01-29 07:19:00 | n |
| 178264 | IIEES SC | SNGE | Z | 0.01 | 1 | 2023-01-28 18:45:05 | 2023-01-29 07:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-28 18:44:15 | -0.4 | y | 0 | 69 | 76 | ||
| IIEES SC | MRD | Z | ESg | E | 2023-01-28 18:44:25 | 0.4 | y | 0 | 69 | 76 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-28 18:44:18 | -0.3 | y | 0 | 91 | 346 | ||
| IIEES SC | MAKU | Z | ESg | E | 2023-01-28 18:44:30 | 0.2 | y | 0 | 91 | 346 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-28 18:44:26 | 0.6 | y | 0 | 135 | 137 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-28 18:44:31 | -0.9 | y | 0 | 177 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-28 18:44:37 | -0.3 | y | 0 | 210 | 161 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-28 18:44:43 | 0.2 | y | 0 | 253 | 270 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-28 18:44:43 | -0.5 | y | 0 | 259 | 84 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-28 18:44:44 | 0.2 | y | 0 | 264 | 170 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-28 18:44:52 | 0.8 | y | 0 | 321 | 339 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-01-28 18:45:05 | -0.6 | y | 0 | 441 | 151 | ||
