Magnitude |
:3 |
| Date & Time (UTC) | 2023-01-28 19:54:21.1 |
| Date & Time (Local) | 1401/11/8 23:24:21.1 |
| Location | Lat:38.564 Lon: 44.936 |
| Region | Azarbaijan Gharbi Province, 2 km of Khoy |
Nearest Cities |
|
| 2 km North of Khoy, Azarbaijan Gharbi Province | |
| 8 km North of Saeedabad, Azarbaijan Gharbi Province | |
| 10 km of Dizaj, Azarbaijan Gharbi Province | |
| 12 km North East of Beyk sofla, Azarbaijan Gharbi Province | |
| 13 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |

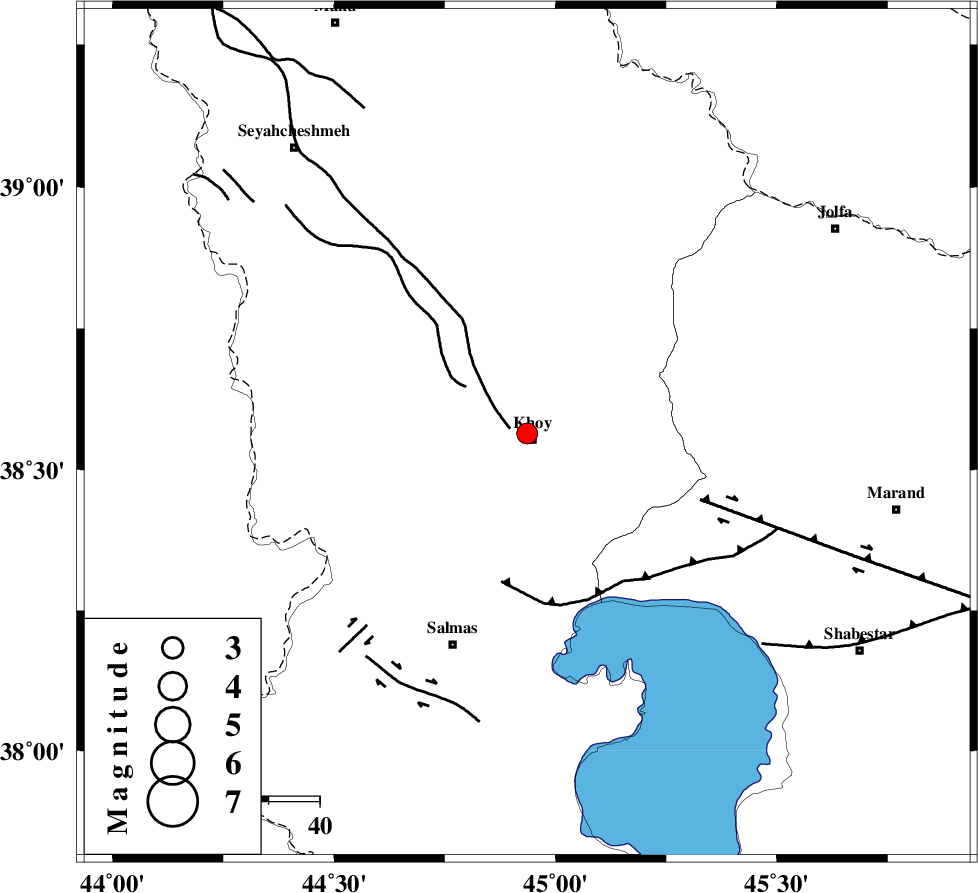

Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 30 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 36 km | |
| Number of Phases | 14 |
| RMS | 0.4 |
| Number of Stations | 14 |
| Error in Latitude | >1.2 km |
| Error in Longitude | 1.2 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178348 | IIEES SC | MRD | Z | 2 | 1 | 2023-01-28 19:54:32 | 2023-01-29 09:19:00 | n |
| 178349 | IIEES SC | MRD | Z | 2 | 1 | 2023-01-28 19:54:41 | 2023-01-29 09:19:00 | n |
| 178350 | IIEES SC | AZR | Z | 3 | 1 | 2023-01-28 19:54:43 | 2023-01-29 09:19:00 | n |
| 178351 | IIEES SC | AZR | Z | 3 | 1 | 2023-01-28 19:55:00 | 2023-01-29 09:19:00 | n |
| 178352 | IIEES SC | GNI | Z | 0.5 | 1 | 2023-01-28 19:54:50 | 2023-01-29 09:19:00 | n |
| 178353 | IIEES SC | GRMI | Z | 0.1 | 1 | 2023-01-28 19:55:02 | 2023-01-29 09:19:00 | n |
| 178354 | IIEES SC | SRSL | Z | 0.06 | 1 | 2023-01-28 19:55:02 | 2023-01-29 09:19:00 | n |
| 178355 | IIEES SC | ZNJK | Z | 0.02 | 1 | 2023-01-28 19:55:18 | 2023-01-29 09:19:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-28 19:54:32 | -0.5 | y | 0 | 69 | 76 | ||
| IIEES SC | MRD | Z | ESg | E | 2023-01-28 19:54:41 | -0.6 | y | 0 | 69 | 76 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-28 19:54:36 | 0.1 | y | 0 | 90 | 346 | ||
| IIEES SC | MAKU | Z | ESg | E | 2023-01-28 19:54:47 | -0.4 | y | 0 | 90 | 346 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-28 19:54:43 | -0.5 | y | 0 | 135 | 137 | ||
| IIEES SC | AZR | Z | ESg | E | 2023-01-28 19:55:00 | 0.1 | y | 0 | 135 | 137 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-28 19:54:50 | 0.5 | y | 0 | 177 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-28 19:54:54 | -0.5 | y | 0 | 211 | 161 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-28 19:55:00 | -0.1 | y | 0 | 253 | 270 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-28 19:55:02 | 0.8 | y | 0 | 259 | 84 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-28 19:55:02 | 0.7 | y | 0 | 265 | 170 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-28 19:55:09 | 0.4 | y | 0 | 321 | 339 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-28 19:55:18 | 0.6 | y | 0 | 392 | 122 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-28 19:55:38 | -0.2 | y | 0 | 560 | 168 | ||
