Magnitude |
:4.6 |
| Date & Time (UTC) | 2023-01-29 15:13:23.5 |
| Date & Time (Local) | 1401/11/9 18:43:23.5 |
| Location | Lat:38.573 Lon: 44.857 |
| Region | Azarbaijan Gharbi Province, 8 km of Khoy |
Nearest Cities |
|
| 6 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 8 km North of Khoy, Azarbaijan Gharbi Province | |
| 12 km of Dizaj, Azarbaijan Gharbi Province | |
| 15 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| 15 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |

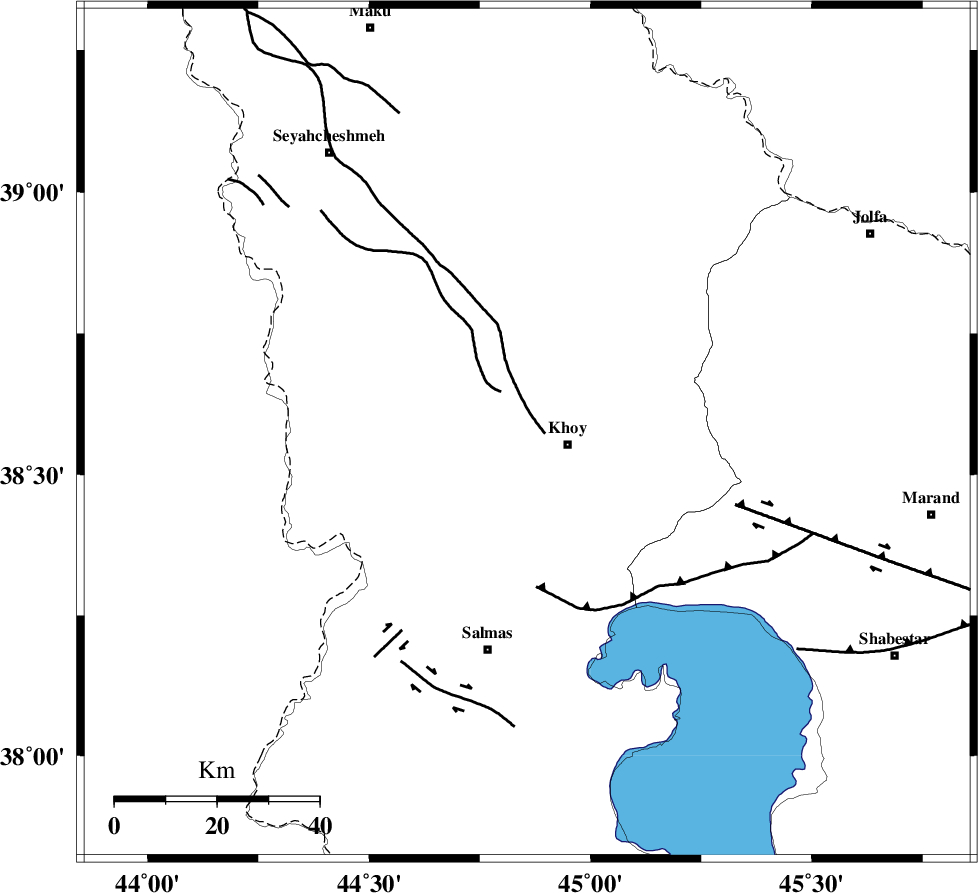

Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 30 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 43 km | |
| Number of Phases | 23 |
| RMS | 0.4 |
| Number of Stations | 23 |
| Error in Latitude | >1.3 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178382 | IIEES SC | MRD | Z | 90 | 1 | 2023-01-29 15:13:36 | 2023-01-30 06:12:00 | n |
| 178383 | IIEES SC | GNI | Z | 20 | 1 | 2023-01-29 15:13:52 | 2023-01-30 06:12:00 | n |
| 178384 | IIEES SC | MAHB | Z | 7 | 1 | 2023-01-29 15:13:57 | 2023-01-30 06:12:00 | n |
| 178385 | IIEES SC | GURO | Z | 2 | 1 | 2023-01-29 15:14:02 | 2023-01-30 06:12:00 | n |
| 178386 | IIEES SC | GRMI | Z | 7 | 1 | 2023-01-29 15:14:04 | 2023-01-30 06:12:00 | n |
| 178387 | IIEES SC | SRSL | Z | 3 | 1 | 2023-01-29 15:14:05 | 2023-01-30 06:12:00 | n |
| 178388 | IIEES SC | DHR | Z | 2 | 1 | 2023-01-29 15:14:28 | 2023-01-30 06:12:00 | n |
| 178389 | IIEES SC | GIDE | Z | 0.3 | 1 | 2023-01-29 15:14:31 | 2023-01-30 06:12:00 | n |
| 178390 | IIEES SC | KCHF | Z | 1 | 1 | 2023-01-29 15:14:36 | 2023-01-30 06:12:00 | n |
| 178391 | IIEES SC | ILBA | Z | 0.5 | 1 | 2023-01-29 15:14:41 | 2023-01-30 06:12:00 | n |
| 178392 | IIEES SC | CHTH | Z | 0.3 | 1 | 2023-01-29 15:14:50 | 2023-01-30 06:12:00 | n |
| 178393 | IIEES SC | GTMR | Z | 0.2 | 1 | 2023-01-29 15:15:08 | 2023-01-30 06:12:00 | n |
| 178394 | IIEES SC | GLO | Z | 0.4 | 1 | 2023-01-29 15:15:15 | 2023-01-30 06:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-29 15:13:36 | -0.3 | y | 0 | 75 | 78 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-29 15:13:38 | -0.5 | y | 0 | 88 | 350 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-29 15:13:46 | -0.8 | y | 0 | 140 | 135 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-29 15:13:52 | 0.2 | y | 0 | 175 | 357 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-29 15:13:57 | -0.8 | y | 0 | 214 | 160 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-29 15:14:02 | 0 | y | 0 | 246 | 269 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-29 15:14:04 | 0.1 | y | 0 | 266 | 84 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-29 15:14:05 | 0.3 | y | 0 | 267 | 169 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-29 15:14:15 | 4.4 | n | 4 | 318 | 340 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-29 15:14:17 | -4 | n | 4 | 398 | 122 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-01-29 15:14:27 | 0.2 | y | 0 | 446 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-01-29 15:14:28 | 0.8 | y | 0 | 451 | 162 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-01-29 15:14:31 | 0.9 | y | 0 | 475 | 113 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-01-29 15:14:36 | 0.7 | y | 0 | 516 | 158 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-29 15:14:41 | -0.5 | y | 0 | 562 | 168 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-01-29 15:14:46 | 3.5 | n | 4 | 569 | 276 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-01-29 15:14:50 | -0.2 | y | 0 | 630 | 118 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-01-29 15:14:56 | -5.5 | n | 4 | 730 | 128 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-01-29 15:15:08 | 0.1 | y | 0 | 779 | 150 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-01-29 15:15:15 | 0.7 | y | 0 | 826 | 106 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-01-29 15:15:33 | -1.4 | n | 4 | 990 | 96 | ||
| IIEES SC | SHRO | Z | EPn | E | 2023-01-29 15:15:39 | 0.2 | y | 0 | 1029 | 106 | ||
| IIEES SC | BJRD | Z | EPn | E | 2023-01-29 15:15:47 | -1.9 | n | 4 | 1105 | 95 | ||
