Magnitude |
:3.9 |
| Date & Time (UTC) | 2023-01-29 22:00:18.5 |
| Date & Time (Local) | 1401/11/10 01:30:18.5 |

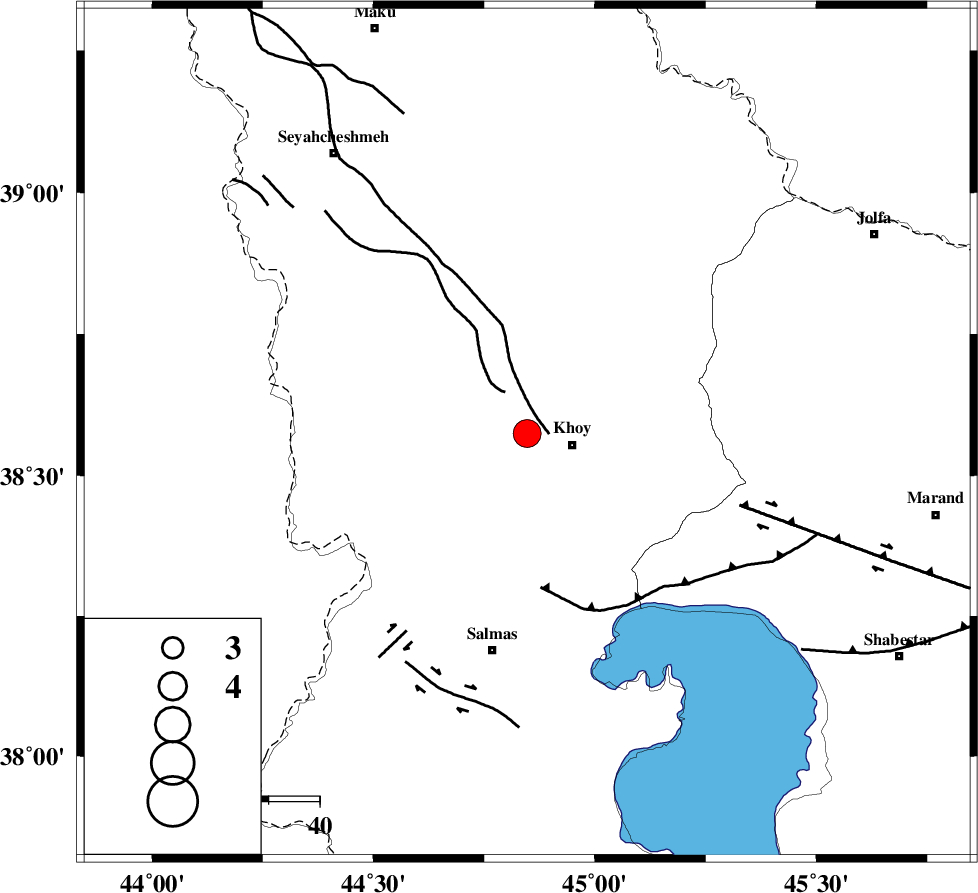

| Location | Lat:38.574 Lon: 44.847 |
| Region | Azarbaijan Gharbi Province, 9 km -West of Khoy |
Nearest Cities |
|
| 5 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 9 km North West of Khoy, Azarbaijan Gharbi Province | |
| 13 km West of Dizaj, Azarbaijan Gharbi Province | |
| 15 km North of Quruq, Azarbaijan Gharbi Province | |
| 16 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 30 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 44 km | |
| Number of Phases | 18 |
| RMS | 0.3 |
| Number of Stations | 18 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 1.1 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178421 | IIEES SC | MRD | Z | 30 | 1 | 2023-01-29 22:00:31 | 2023-01-30 06:40:00 | n |
| 178422 | IIEES SC | GNI | Z | 8 | 1 | 2023-01-29 22:00:47 | 2023-01-30 06:40:00 | n |
| 178423 | IIEES SC | MAHB | Z | 2 | 1 | 2023-01-29 22:00:52 | 2023-01-30 06:40:00 | n |
| 178424 | IIEES SC | GRMI | Z | 1 | 1 | 2023-01-29 22:01:00 | 2023-01-30 06:40:00 | n |
| 178425 | IIEES SC | SRSL | Z | 0.9 | 1 | 2023-01-29 22:01:00 | 2023-01-30 06:40:00 | n |
| 178426 | IIEES SC | DHR | Z | 0.3 | 1 | 2023-01-29 22:01:22 | 2023-01-30 06:40:00 | n |
| 178427 | IIEES SC | GIDE | Z | 0.06 | 1 | 2023-01-29 22:01:26 | 2023-01-30 06:40:00 | n |
| 178428 | IIEES SC | ILBA | Z | 0.1 | 1 | 2023-01-29 22:01:36 | 2023-01-30 06:40:00 | n |
| 178429 | IIEES SC | CHTH | Z | 0.05 | 1 | 2023-01-29 22:01:45 | 2023-01-30 06:40:00 | n |
| 178430 | IIEES SC | GTMR | Z | 0.04 | 1 | 2023-01-29 22:02:02 | 2023-01-30 06:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-01-29 22:00:31 | -0.3 | y | 0 | 76 | 78 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-01-29 22:00:33 | -0.3 | y | 0 | 88 | 351 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-01-29 22:00:41 | -0.3 | y | 0 | 141 | 135 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-01-29 22:00:47 | 0.2 | y | 0 | 175 | 357 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-01-29 22:00:52 | -0.2 | y | 0 | 214 | 159 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-01-29 22:00:56 | 0 | y | 0 | 245 | 269 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-01-29 22:01:00 | 0.5 | y | 0 | 266 | 84 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-01-29 22:01:00 | 0.6 | y | 0 | 267 | 169 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-01-29 22:01:08 | 2.1 | n | 4 | 317 | 340 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-01-29 22:01:12 | -3.6 | n | 4 | 399 | 122 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-01-29 22:01:22 | 0.3 | y | 0 | 446 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-01-29 22:01:22 | 0 | y | 0 | 451 | 162 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-01-29 22:01:26 | 0.5 | y | 0 | 476 | 113 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-01-29 22:01:36 | -0.1 | y | 0 | 563 | 167 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-01-29 22:01:45 | 0.2 | y | 0 | 631 | 118 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-01-29 22:02:02 | -0.7 | y | 0 | 780 | 150 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-01-29 22:02:08 | -0.3 | y | 0 | 827 | 106 | ||
| IIEES SC | ABGH | Z | EPn | E | 2023-01-29 22:02:15 | -3.1 | n | 4 | 902 | 103 | ||
