Magnitude
 :4
Date & Time (UTC) 2023-02-01 05:41:09.5
Date & Time (Local) 1401/11/12  09:11:09.5

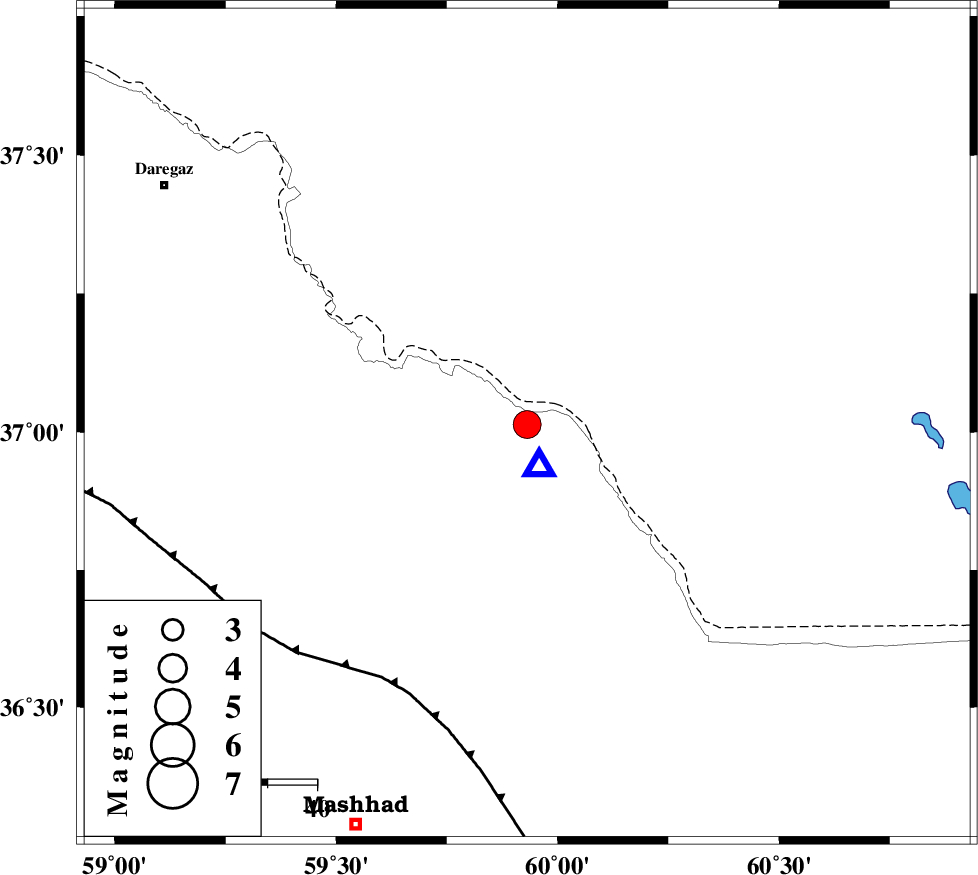

Location Lat:37.014 Lon: 59.931
Region Khorasan(center) Province, 88 km North-East of Mashhad
Nearest Cities
11 km North East of Kalat, Khorasan(center) Province
47 km North East of Kardehno, Khorasan(center) Province
53 km North West of Amirabad, Khorasan(center) Province
62 km North East of Govarashk, Khorasan(center) Province
64 km North East of Faz, Khorasan(center) Province
Depth 15 km
Agency
Faults within 150 km:
BINALUD_F1 (Length: 178 km) , Distance to epicenter: 59 km
BINALUD_F1 (Length: 129 km) , Distance to epicenter: 116 km
NAYSHABUR_F (Length: 74 km) , Distance to epicenter: 131 km
Number of Phases 28
RMS 0.3
Number of Stations 28
Error in Latitude >1.3 km
Error in Longitude 1.3 km
Error in Depth 2.7 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

Amplitude

UIDAgencyStationComponentAmplitudePeriodArrival TimeProccessing TimeSignal Clip
178629IIEES SCMSHDZ 2012023-02-01 05:41:232023-02-01 06:47:00n
178630IIEES SCSRKHZ 1012023-02-01 05:41:292023-02-01 06:47:00n
178631IIEES SCTBJMZ 712023-02-01 05:41:412023-02-01 06:47:00n
178632IIEES SCMRVTZ 0.312023-02-01 05:41:592023-02-01 06:47:00n
178633IIEES SCSHROZ 0.512023-02-01 05:42:012023-02-01 06:47:00n
178634IIEES SCSHRTZ 0.412023-02-01 05:42:032023-02-01 06:47:00n
178635IIEES SCTABSZ 0.512023-02-01 05:42:132023-02-01 06:47:00n
178636IIEES SCBSRNZ 0.0812023-02-01 05:42:272023-02-01 06:47:00n
178637IIEES SCYZKHZ 0.0712023-02-01 05:42:442023-02-01 06:47:00n
178638IIEES SCTAFTZ 0.0512023-02-01 05:42:562023-02-01 06:47:00n
178639IIEES SCCHTHZ 0.0212023-02-01 05:42:572023-02-01 06:47:00n
178640IIEES SCNASNZ 0.0312023-02-01 05:42:562023-02-01 06:47:00n
178641IIEES SCKRBRZ 0.0712023-02-01 05:43:002023-02-01 06:47:00n
178642IIEES SCGHVRZ 0.0612023-02-01 05:43:012023-02-01 06:47:00n
178643IIEES SCKBLZ 0.0212023-02-01 05:43:042023-02-01 06:47:00n

Phase

AgencyStationComponentPhase TypePhase QualityFirst MotionObserved Arrival TimeTime ResidualLoc. FlagInput WeightDistanceAzimuth
IIEES SCMSHDZ EPg E2023-02-01 05:41:23-0.2y086204
IIEES SCSRKHZ EPg E2023-02-01 05:41:29-0.1y0121116
IIEES SCJRKHZ EPg E2023-02-01 05:41:310.2y0128163
IIEES SCQUCHZ EPg E2023-02-01 05:41:30-0.3y0130271
IIEES SCTBJMZ EPg E2023-02-01 05:41:410.2y0197170
IIEES SCDARNZ EPn E2023-02-01 05:41:54-0.3y0304228
IIEES SCMRVTZ EPn E2023-02-01 05:41:59-0.4y0348282
IIEES SCSHROZ EPn E2023-02-01 05:42:01-1.8y0368252
IIEES SCSHRTZ EPn E2023-02-01 05:42:03-0.3y0375175
IIEES SCTABSZ EPn E2023-02-01 05:42:130.1y0452214
IIEES SCABGHZ EPn E2023-02-01 05:42:140.3y0459266
IIEES SCGLOZ EPn E2023-02-01 05:42:250.6y0548264
IIEES SCBSRNZ EPn E2023-02-01 05:42:270y0565188
IIEES SCANJZ EPn E2023-02-01 05:42:27-0.2y0567252
IIEES SCYZKHZ EPn E2023-02-01 05:42:44-0.7y0709224
IIEES SCTAFTZ EPn E2023-02-01 05:42:560.6y0791222
IIEES SCCHTHZ EPn E2023-02-01 05:42:570.6y0799261
IIEES SCNASNZ EPn E2023-02-01 05:42:56-0.1y0802234
IIEES SCKRBRZ EPn E2023-02-01 05:43:00-0.5y0834201
IIEES SCGHVRZ EPn E2023-02-01 05:43:010.7y0834250
IIEES SCKBLZ EPn E2023-02-01 05:43:04-0.2y0868108
IIEES SCKBAMZ EPn E2023-02-01 05:43:06-0.1y0885189
IIEES SCGIDEZ EPn E2023-02-01 05:43:090.9y0900269
IIEES SCASAOZ EPn E2023-02-01 05:43:140.9y0936253
IIEES SCZNJKZ EPn E2023-02-01 05:43:19-2.3n41004268
IIEES SCGRMIZ EPn E2023-02-01 05:43:28-2.7n41077281
IIEES SCMRDZ EPn E2023-02-01 05:43:53-0.7y01266279
IIEES SCAAKZ EPn E2023-02-01 05:44:06-4n4139463
