Magnitude |
:3.5 |
| Date & Time (UTC) | 2023-02-01 07:56:19.8 |
| Date & Time (Local) | 1401/11/12 11:26:19.8 |

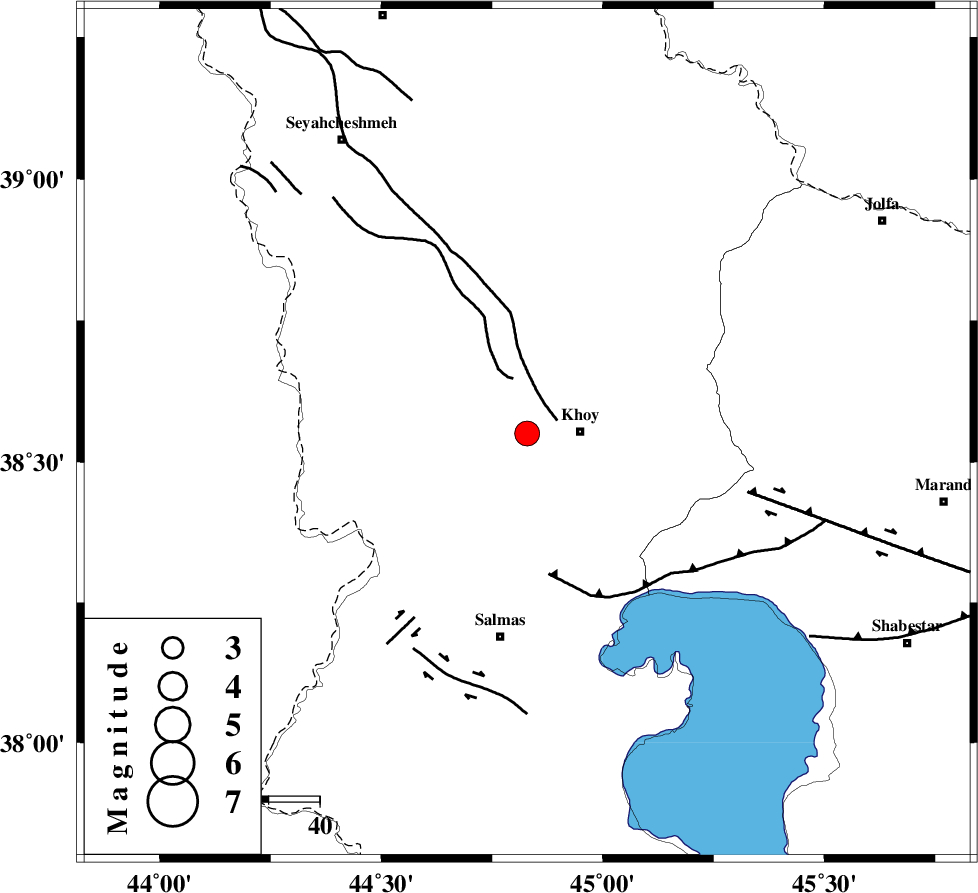

| Location | Lat:38.55 Lon: 44.829 |
| Region | Azarbaijan Gharbi Province, 10 km -West of Khoy |
Nearest Cities |
|
| 3 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 10 km West of Khoy, Azarbaijan Gharbi Province | |
| 14 km North of Quruq, Azarbaijan Gharbi Province | |
| 16 km West of Dizaj, Azarbaijan Gharbi Province | |
| 17 km West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 6 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 28 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 42 km | |
| Number of Phases | 22 |
| RMS | 0.4 |
| Number of Stations | 22 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 7.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 178655 | IIEES SC | MRD | Z | 20 | 1 | 2023-02-01 07:56:32 | 2023-02-01 09:10:00 | n |
| 178656 | IIEES SC | MAKU | Z | 1 | 1 | 2023-02-01 07:56:35 | 2023-02-01 09:10:00 | n |
| 178657 | IIEES SC | GNI | Z | 3 | 1 | 2023-02-01 07:56:49 | 2023-02-01 09:10:00 | n |
| 178658 | IIEES SC | MAHB | Z | 0.7 | 1 | 2023-02-01 07:56:53 | 2023-02-01 09:10:00 | n |
| 178659 | IIEES SC | SRSL | Z | 0.4 | 1 | 2023-02-01 07:57:00 | 2023-02-01 09:10:00 | n |
| 178660 | IIEES SC | GRMI | Z | 0.4 | 1 | 2023-02-01 07:57:01 | 2023-02-01 09:10:00 | n |
| 178661 | IIEES SC | ZNJK | Z | 0.08 | 1 | 2023-02-01 07:57:17 | 2023-02-01 09:10:00 | n |
| 178662 | IIEES SC | SNGE | Z | 0.02 | 1 | 2023-02-01 07:57:22 | 2023-02-01 09:10:00 | n |
| 178663 | IIEES SC | DHR | Z | 0.1 | 1 | 2023-02-01 07:57:23 | 2023-02-01 09:10:00 | n |
| 178664 | IIEES SC | ILBA | Z | 0.04 | 1 | 2023-02-01 07:57:37 | 2023-02-01 09:10:00 | n |
| 178665 | IIEES SC | CHTH | Z | 0.02 | 1 | 2023-02-01 07:57:46 | 2023-02-01 09:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-02-01 07:56:32 | -0.9 | y | 0 | 78 | 77 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-02-01 07:56:35 | -0.4 | y | 0 | 90 | 352 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-02-01 07:56:43 | -0.1 | y | 0 | 140 | 134 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-02-01 07:56:49 | 0.7 | y | 0 | 178 | 358 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-02-01 07:56:53 | -0.3 | y | 0 | 212 | 159 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-02-01 07:56:58 | -0.1 | y | 0 | 244 | 270 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-02-01 07:57:00 | -0.3 | y | 0 | 265 | 168 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-02-01 07:57:01 | 0.4 | y | 0 | 268 | 84 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-02-01 07:57:12 | 4.5 | n | 4 | 319 | 341 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-02-01 07:57:17 | 0.4 | y | 0 | 399 | 121 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-02-01 07:57:22 | -0.3 | y | 0 | 445 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-02-01 07:57:23 | 0.2 | y | 0 | 449 | 162 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-02-01 07:57:33 | 6 | n | 4 | 476 | 112 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-02-01 07:57:37 | 0.6 | y | 0 | 560 | 167 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-02-01 07:57:46 | 0.1 | y | 0 | 631 | 118 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-02-01 07:58:11 | 0.3 | y | 0 | 828 | 106 | ||
| IIEES SC | ABGH | Z | EPn | E | 2023-02-01 07:58:19 | -0.4 | y | 0 | 903 | 103 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-02-01 07:58:30 | -0.9 | y | 0 | 993 | 96 | ||
| IIEES SC | SHRO | Z | EPn | E | 2023-02-01 07:58:35 | 0 | y | 0 | 1031 | 106 | ||
| IIEES SC | BJRD | Z | EPn | E | 2023-02-01 07:58:45 | -0.1 | y | 0 | 1107 | 95 | ||
| IIEES SC | DARN | Z | EPn | E | 2023-02-01 07:58:55 | 0.7 | y | 0 | 1184 | 108 | ||
| IIEES SC | MEH | Z | EPn | E | 2023-02-01 07:58:56 | 0 | y | 0 | 1196 | 132 | ||
