Magnitude |
:3.8 |
| Date & Time (UTC) | 2023-02-17 19:33:47.7 |
| Date & Time (Local) | 1401/11/28 23:03:47.7 |

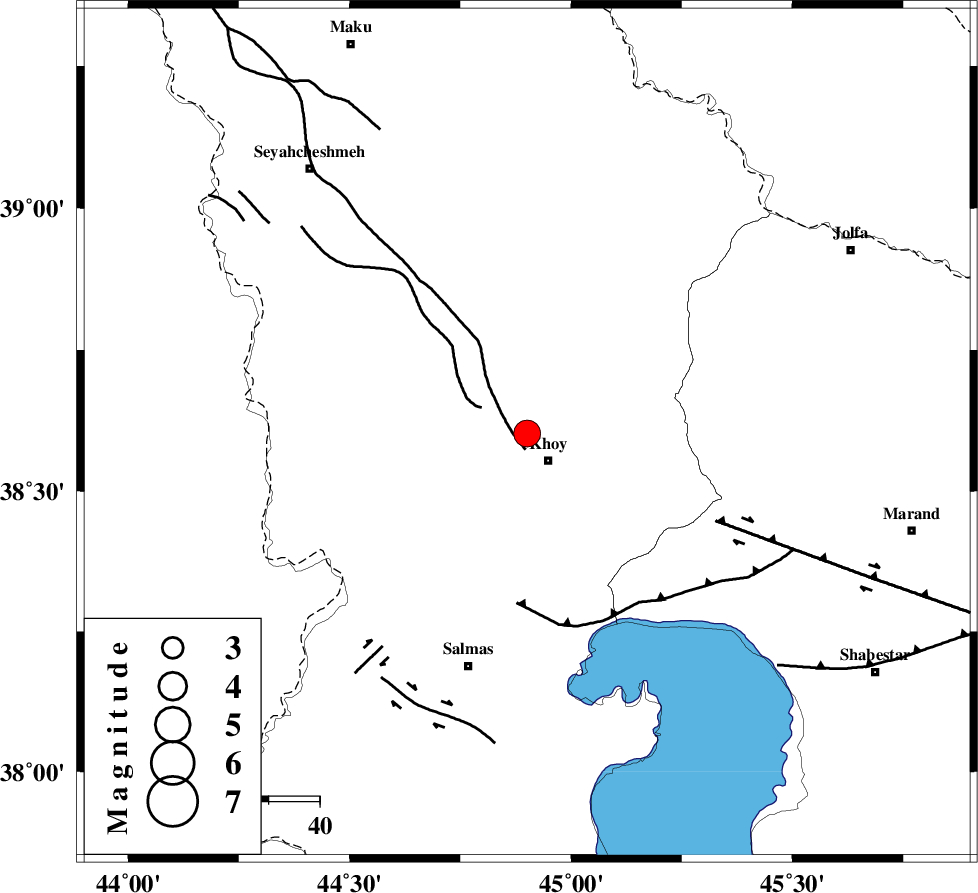

| Location | Lat:38.602 Lon: 44.901 |
| Region | Azarbaijan Gharbi Province, 7 km of Khoy |
Nearest Cities |
|
| 7 km North of Khoy, Azarbaijan Gharbi Province | |
| 7 km of Dizaj, Azarbaijan Gharbi Province | |
| 11 km North East of Beyk sofla, Azarbaijan Gharbi Province | |
| 12 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| 17 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 3 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 33 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 41 km | |
| Number of Phases | 23 |
| RMS | 0.5 |
| Number of Stations | 23 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 5.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179136 | IIEES SC | GNI | Z | 4 | 1 | 2023-02-17 19:34:16 | 2023-02-19 05:16:00 | n |
| 179137 | IIEES SC | MAHB | Z | 1 | 1 | 2023-02-17 19:34:21 | 2023-02-19 05:16:00 | n |
| 179138 | IIEES SC | GURO | Z | 0.4 | 1 | 2023-02-17 19:34:27 | 2023-02-19 05:16:00 | n |
| 179139 | IIEES SC | GRMI | Z | 2 | 1 | 2023-02-17 19:34:29 | 2023-02-19 05:16:00 | n |
| 179140 | IIEES SC | SRSL | Z | 0.7 | 1 | 2023-02-17 19:34:30 | 2023-02-19 05:16:00 | n |
| 179141 | IIEES SC | ZNJK | Z | 0.2 | 1 | 2023-02-17 19:34:44 | 2023-02-19 05:16:00 | n |
| 179142 | IIEES SC | DHR | Z | 0.2 | 1 | 2023-02-17 19:34:52 | 2023-02-19 05:16:00 | n |
| 179143 | IIEES SC | GIDE | Z | 0.05 | 1 | 2023-02-17 19:34:55 | 2023-02-19 05:16:00 | n |
| 179144 | IIEES SC | HGHA | Z | 0.1 | 1 | 2023-02-17 19:34:57 | 2023-02-19 05:16:00 | n |
| 179145 | IIEES SC | ILBA | Z | 0.09 | 1 | 2023-02-17 19:35:05 | 2023-02-19 05:16:00 | n |
| 179146 | IIEES SC | CHTH | Z | 0.04 | 1 | 2023-02-17 19:35:14 | 2023-02-19 05:16:00 | n |
| 179147 | IIEES SC | ASAO | Z | 0.04 | 1 | 2023-02-17 19:35:15 | 2023-02-19 05:16:00 | n |
| 179148 | IIEES SC | GHVR | Z | 0.07 | 1 | 2023-02-17 19:35:25 | 2023-02-19 05:16:00 | n |
| 179149 | IIEES SC | GTMR | Z | 0.04 | 1 | 2023-02-17 19:35:32 | 2023-02-19 05:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-02-17 19:34:00 | 0.6 | y | 0 | 71 | 80 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-02-17 19:34:02 | -0.6 | y | 0 | 86 | 347 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-02-17 19:34:10 | -0.5 | y | 0 | 140 | 137 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-02-17 19:34:16 | 0.2 | y | 0 | 172 | 355 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-02-17 19:34:21 | -0.9 | y | 0 | 216 | 161 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-02-17 19:34:27 | 0.1 | y | 0 | 250 | 269 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-02-17 19:34:29 | 0.7 | y | 0 | 261 | 85 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-02-17 19:34:30 | 0.8 | y | 0 | 269 | 170 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-02-17 19:34:39 | 4.2 | n | 4 | 316 | 339 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-02-17 19:34:44 | -0.4 | y | 0 | 397 | 123 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-02-17 19:34:50 | -0.7 | y | 0 | 446 | 151 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-02-17 19:34:52 | 0.5 | y | 0 | 453 | 163 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-02-17 19:34:55 | 0.7 | y | 0 | 472 | 113 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-02-17 19:34:57 | 0.4 | y | 0 | 493 | 134 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-02-17 19:35:05 | -0.1 | y | 0 | 565 | 168 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-02-17 19:35:14 | 0.4 | y | 0 | 628 | 118 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-02-17 19:35:15 | 0 | y | 0 | 642 | 134 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-02-17 19:35:25 | -0.7 | y | 0 | 729 | 129 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-02-17 19:35:32 | -0.6 | y | 0 | 780 | 151 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-02-17 19:35:39 | 0.9 | y | 0 | 823 | 106 | ||
| IIEES SC | ABGH | Z | EPn | E | 2023-02-17 19:35:47 | -0.1 | y | 0 | 898 | 103 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-02-17 19:35:57 | -0.5 | y | 0 | 987 | 96 | ||
| IIEES SC | BJRD | Z | EPn | E | 2023-02-17 19:36:12 | -0.6 | y | 0 | 1101 | 95 | ||
