Magnitude |
:3.5 |
| Date & Time (UTC) | 2023-02-16 06:19:59.2 |
| Date & Time (Local) | 1401/11/27 09:49:59.2 |

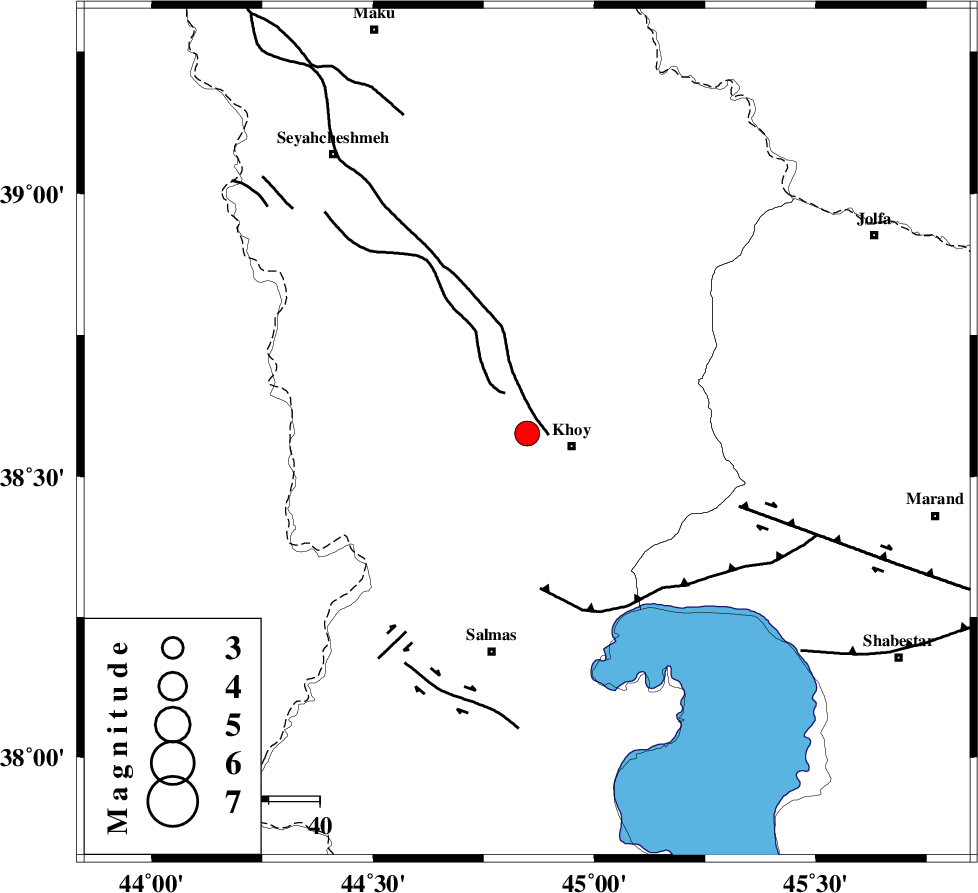

| Location | Lat:38.576 Lon: 44.848 |
| Region | Azarbaijan Gharbi Province, 9 km -West of Khoy |
Nearest Cities |
|
| 5 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 9 km North West of Khoy, Azarbaijan Gharbi Province | |
| 12 km West of Dizaj, Azarbaijan Gharbi Province | |
| 15 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| 16 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 31 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 44 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 15 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.5 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179179 | IIEES SC | MAKU | Z | 2 | 1 | 2023-02-16 06:20:14 | 2023-02-19 06:35:00 | n |
| 179180 | IIEES SC | GNI | Z | 3 | 1 | 2023-02-16 06:20:28 | 2023-02-19 06:35:00 | n |
| 179181 | IIEES SC | MAHB | Z | 1 | 1 | 2023-02-16 06:20:33 | 2023-02-19 06:35:00 | n |
| 179182 | IIEES SC | GURO | Z | 0.2 | 1 | 2023-02-16 06:20:38 | 2023-02-19 06:35:00 | n |
| 179183 | IIEES SC | GRMI | Z | 0.7 | 1 | 2023-02-16 06:20:41 | 2023-02-19 06:35:00 | n |
| 179184 | IIEES SC | SRSL | Z | 0.4 | 1 | 2023-02-16 06:20:40 | 2023-02-19 06:35:00 | n |
| 179185 | IIEES SC | ZNJK | Z | 0.08 | 1 | 2023-02-16 06:20:56 | 2023-02-19 06:35:00 | n |
| 179186 | IIEES SC | HGHA | Z | 0.05 | 1 | 2023-02-16 06:21:09 | 2023-02-19 06:35:00 | n |
| 179187 | IIEES SC | ILBA | Z | 0.04 | 1 | 2023-02-16 06:21:17 | 2023-02-19 06:35:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-02-16 06:20:12 | 0.1 | y | 0 | 76 | 78 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-02-16 06:20:14 | -0.5 | y | 0 | 88 | 351 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-02-16 06:20:22 | -0.6 | y | 0 | 141 | 135 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-02-16 06:20:28 | 0.2 | y | 0 | 175 | 357 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-02-16 06:20:33 | -0.1 | y | 0 | 215 | 159 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-02-16 06:20:38 | 0.1 | y | 0 | 246 | 269 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-02-16 06:20:41 | 0.6 | y | 0 | 266 | 84 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-02-16 06:20:40 | 0 | y | 0 | 267 | 169 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-02-16 06:20:48 | 1.8 | n | 4 | 317 | 340 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-02-16 06:20:56 | -0.3 | y | 0 | 399 | 122 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-02-16 06:21:03 | 0.4 | y | 0 | 446 | 150 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-02-16 06:21:09 | 3.3 | n | 4 | 476 | 113 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-02-16 06:21:09 | 0.3 | y | 0 | 495 | 134 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-02-16 06:21:17 | 0.4 | y | 0 | 563 | 167 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-02-16 06:22:09 | -0.7 | y | 0 | 991 | 96 | ||
