Magnitude |
:3.7 |
| Date & Time (UTC) | 2023-02-20 11:08:39.7 |
| Date & Time (Local) | 1401/12/1 14:38:39.7 |

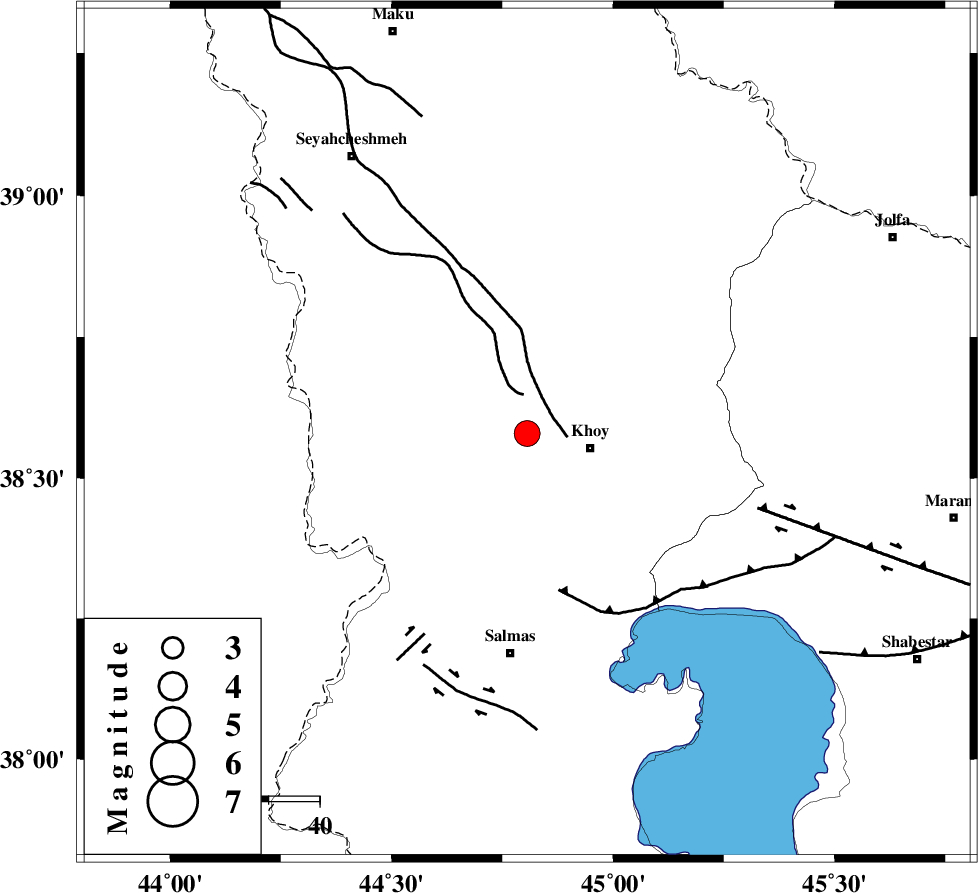

| Location | Lat:38.579 Lon: 44.806 |
| Region | Azarbaijan Gharbi Province, 13 km -West of Khoy |
Nearest Cities |
|
| 4 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 13 km North West of Khoy, Azarbaijan Gharbi Province | |
| 15 km West of Dizaj, Azarbaijan Gharbi Province | |
| 18 km North West of Quruq, Azarbaijan Gharbi Province | |
| 19 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 8 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 31 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 44 km | |
| Number of Phases | 16 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | >2.1 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 9.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179257 | IIEES SC | GNI | Z | 7 | 1 | 2023-02-20 11:09:08 | 2023-02-21 05:01:00 | n |
| 179258 | IIEES SC | MAHB | Z | 1 | 1 | 2023-02-20 11:09:14 | 2023-02-21 05:01:00 | n |
| 179259 | IIEES SC | GURO | Z | 0.4 | 1 | 2023-02-20 11:09:17 | 2023-02-21 05:01:00 | n |
| 179260 | IIEES SC | SRSL | Z | 0.6 | 1 | 2023-02-20 11:09:21 | 2023-02-21 05:01:00 | n |
| 179261 | IIEES SC | GRMI | Z | 1 | 1 | 2023-02-20 11:09:21 | 2023-02-21 05:01:00 | n |
| 179262 | IIEES SC | ZNJK | Z | 0.1 | 1 | 2023-02-20 11:09:37 | 2023-02-21 05:01:00 | n |
| 179263 | IIEES SC | DHR | Z | 0.2 | 1 | 2023-02-20 11:09:44 | 2023-02-21 05:01:00 | n |
| 179264 | IIEES SC | HGHA | Z | 0.07 | 1 | 2023-02-20 11:09:50 | 2023-02-21 05:01:00 | n |
| 179265 | IIEES SC | ILBA | Z | 0.06 | 1 | 2023-02-20 11:09:57 | 2023-02-21 05:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-02-20 11:08:53 | -0.3 | y | 0 | 80 | 79 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-02-20 11:08:54 | -0.6 | y | 0 | 87 | 353 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-02-20 11:09:03 | -0.4 | y | 0 | 144 | 134 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-02-20 11:09:08 | 0.7 | y | 0 | 174 | 358 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-02-20 11:09:14 | 0 | y | 0 | 216 | 158 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-02-20 11:09:17 | -0.1 | y | 0 | 242 | 269 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-02-20 11:09:21 | 0.7 | y | 0 | 268 | 168 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-02-20 11:09:21 | -0.1 | y | 0 | 270 | 85 | ||
| IIEES SC | BGD | Z | EPn | E | 2023-02-20 11:09:28 | 1.6 | n | 4 | 316 | 341 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-02-20 11:09:37 | 0.1 | y | 0 | 403 | 122 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-02-20 11:09:42 | -0.7 | y | 0 | 448 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-02-20 11:09:44 | 0.8 | y | 0 | 453 | 162 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-02-20 11:09:50 | 0.6 | y | 0 | 498 | 134 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-02-20 11:09:57 | 0 | y | 0 | 564 | 167 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-02-20 11:10:31 | 0.4 | y | 0 | 830 | 106 | ||
| IIEES SC | MRVT | Z | EPn | E | 2023-02-20 11:10:50 | -1.1 | y | 0 | 995 | 96 | ||
