Magnitude |
:3.4 |
| Date & Time (UTC) | 2023-02-22 02:21:28.0 |
| Date & Time (Local) | 1401/12/3 05:51:28.0 |

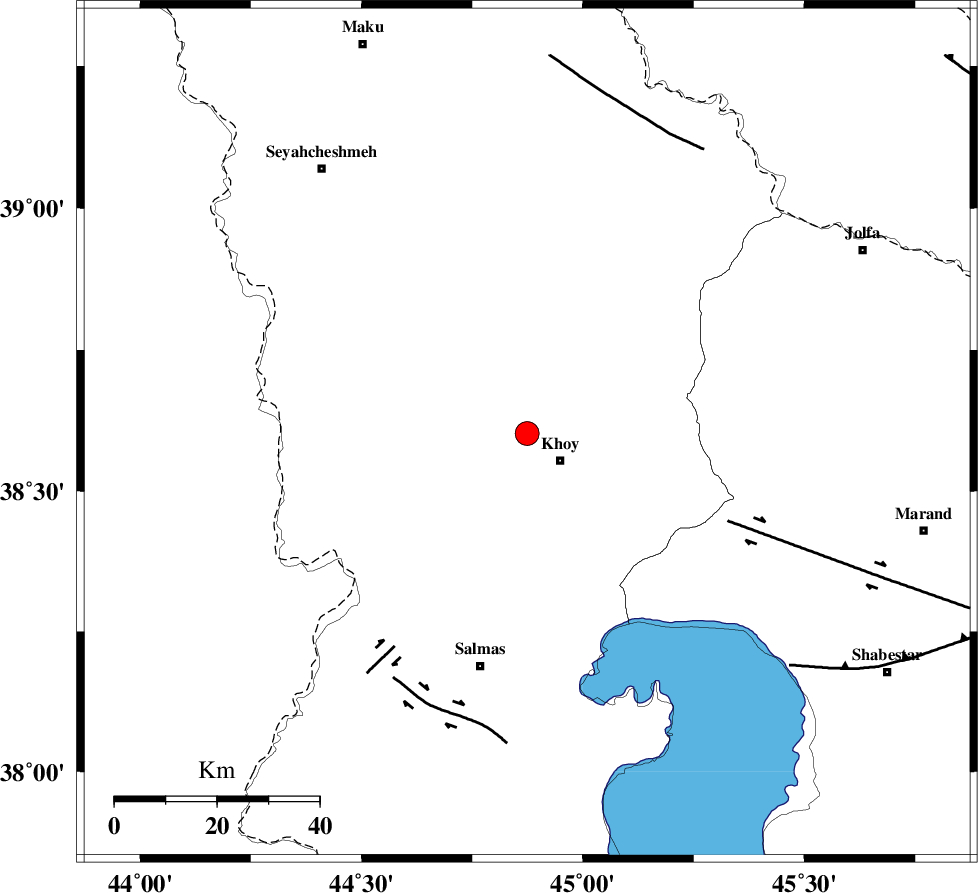

| Location | Lat:38.602 Lon: 44.874 |
| Region | Azarbaijan Gharbi Province, 8 km of Khoy |
Nearest Cities |
|
| 8 km North of Khoy, Azarbaijan Gharbi Province | |
| 9 km of Dizaj, Azarbaijan Gharbi Province | |
| 9 km North of Beyk sofla, Azarbaijan Gharbi Province | |
| 14 km North West of Saeedabad, Azarbaijan Gharbi Province | |
| 18 km North of Quruq, Azarbaijan Gharbi Province | |
| Depth | 10 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 4 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 33 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 43 km | |
| Number of Phases | 10 |
| RMS | 0.4 |
| Number of Stations | 10 |
| Error in Latitude | >3.3 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 7.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179344 | IIEES SC | GNI | Z | 1 | 1 | 2023-02-22 02:21:56 | 2023-02-22 05:05:00 | n |
| 179345 | IIEES SC | GRMI | Z | 0.3 | 1 | 2023-02-22 02:22:09 | 2023-02-22 05:05:00 | n |
| 179346 | IIEES SC | SNGE | Z | 0.04 | 1 | 2023-02-22 02:22:32 | 2023-02-22 05:05:00 | n |
| 179347 | IIEES SC | GTMR | Z | 0.01 | 1 | 2023-02-22 02:23:13 | 2023-02-22 05:05:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | MRD | Z | EPg | E | 2023-02-22 02:21:40 | -0.4 | y | 0 | 73 | 80 | ||
| IIEES SC | MAKU | Z | EPg | E | 2023-02-22 02:21:42 | -0.5 | y | 0 | 85 | 349 | ||
| IIEES SC | AZR | Z | EPg | E | 2023-02-22 02:21:50 | -0.8 | y | 0 | 141 | 137 | ||
| IIEES SC | GNI | Z | EPg | E | 2023-02-22 02:21:56 | 0.4 | y | 0 | 172 | 356 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-02-22 02:22:03 | 0.4 | y | 0 | 216 | 160 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-02-22 02:22:09 | 0.2 | y | 0 | 264 | 85 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-02-22 02:22:09 | 0 | y | 0 | 270 | 169 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-02-22 02:22:32 | 0.5 | y | 0 | 448 | 150 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-02-22 02:22:33 | 0.6 | y | 0 | 454 | 163 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-02-22 02:23:13 | -0.1 | y | 0 | 781 | 151 | ||
