Magnitude |
:4.1 |
| Date & Time (UTC) | 2023-02-24 23:25:27.4 |
| Date & Time (Local) | 1401/12/6 02:55:27.4 |

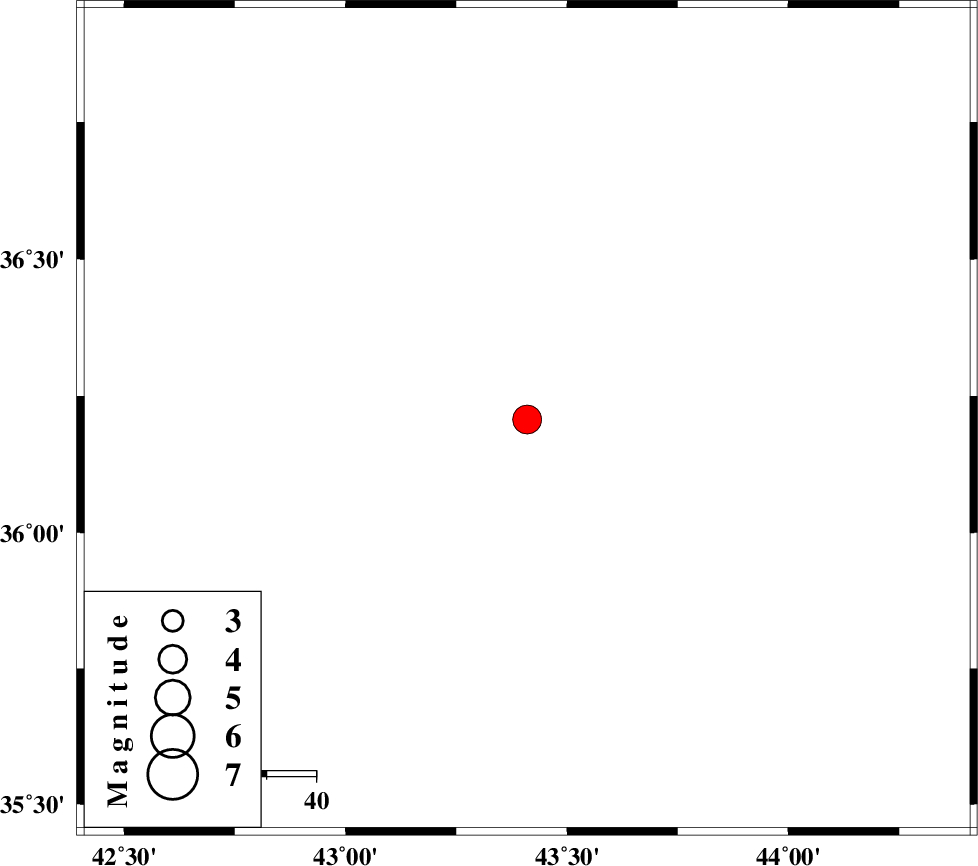

| Location | Lat:36.207 Lon: 43.41 |
| Region | Iraq |
Nearest Cities |
|
| 164 km South West of Piranshahr, Azarbaijan Gharbi Province | |
| 165 km South West of Silveh, Azarbaijan Gharbi Province | |
| 167 km South West of Chiyaneh, Azarbaijan Gharbi Province | |
| 169 km South West of Kavir, Azarbaijan Gharbi Province | |
| 176 km South West of Ziveh, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| Number of Phases | 21 |
| RMS | 0.2 |
| Number of Stations | 21 |
| Error in Latitude | >0.6 km |
| Error in Longitude | 0.6 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 179375 | IIEES SC | GURO | Z | 1 | 1 | 2023-02-24 23:26:10 | 2023-02-25 05:39:00 | n |
| 179376 | IIEES SC | ILBA | Z | 0.4 | 1 | 2023-02-24 23:26:23 | 2023-02-25 05:39:00 | n |
| 179377 | IIEES SC | GNI | Z | 0.4 | 1 | 2023-02-24 23:26:32 | 2023-02-25 05:39:00 | n |
| 179378 | IIEES SC | ZNJK | Z | 0.3 | 1 | 2023-02-24 23:26:34 | 2023-02-25 05:39:00 | n |
| 179379 | IIEES SC | GRMI | Z | 0.2 | 1 | 2023-02-24 23:26:36 | 2023-02-25 05:39:00 | n |
| 179380 | IIEES SC | ARPR | Z | 0.4 | 1 | 2023-02-24 23:26:43 | 2023-02-25 05:39:00 | n |
| 179381 | IIEES SC | GIDE | Z | 0.1 | 1 | 2023-02-24 23:26:48 | 2023-02-25 05:39:00 | n |
| 179382 | IIEES SC | ASAO | Z | 0.2 | 1 | 2023-02-24 23:26:54 | 2023-02-25 05:39:00 | n |
| 179383 | IIEES SC | CHTH | Z | 0.05 | 1 | 2023-02-24 23:27:00 | 2023-02-25 05:39:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPg | E | 2023-02-24 23:25:57 | 0.1 | y | 0 | 182 | 90 | ||
| IIEES SC | SRSL | Z | ESg | E | 2023-02-24 23:26:19 | 0.2 | y | 0 | 182 | 90 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-02-24 23:26:01 | -0.6 | y | 0 | 215 | 73 | ||
| IIEES SC | MAHB | Z | ES | E | 2023-02-24 23:26:26 | -0.7 | n | 4 | 215 | 73 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-02-24 23:26:10 | 0.2 | y | 0 | 281 | 55 | ||
| IIEES SC | GURO | Z | EPn | E | 2023-02-24 23:26:10 | -0.3 | y | 0 | 287 | 335 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-02-24 23:26:14 | -0.2 | y | 0 | 318 | 122 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-02-24 23:26:18 | -0.1 | y | 0 | 344 | 36 | ||
| IIEES SC | MAKU | Z | EPn | E | 2023-02-24 23:26:21 | 0 | y | 0 | 367 | 18 | ||
| IIEES SC | SNGE | Z | EPn | E | 2023-02-24 23:26:22 | -0.3 | y | 0 | 377 | 109 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-02-24 23:26:23 | 0 | y | 0 | 384 | 138 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-02-24 23:26:24 | 0 | y | 0 | 394 | 123 | ||
| IIEES SC | GNI | Z | EPn | E | 2023-02-24 23:26:32 | 0.3 | y | 0 | 453 | 15 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2023-02-24 23:26:34 | 0.2 | y | 0 | 476 | 84 | ||
| IIEES SC | GRMI | Z | EPn | E | 2023-02-24 23:26:36 | -0.3 | y | 0 | 490 | 54 | ||
| IIEES SC | HGHA | Z | EPn | E | 2023-02-24 23:26:37 | -0.1 | y | 0 | 498 | 99 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-02-24 23:26:43 | 0.1 | y | 0 | 551 | 306 | ||
| IIEES SC | GIDE | Z | EPn | E | 2023-02-24 23:26:48 | 0.8 | y | 0 | 580 | 82 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-02-24 23:26:54 | 0.4 | y | 0 | 629 | 107 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-02-24 23:26:57 | -0.8 | y | 0 | 669 | 128 | ||
| IIEES SC | CHTH | Z | EPn | E | 2023-02-24 23:27:00 | -1.6 | y | 0 | 696 | 93 | ||
