Magnitude |
:3.4 |
| Date & Time (UTC) | 2023-09-08 18:14:16.1 |
| Date & Time (Local) | 1402/6/17 21:44:16.1 |

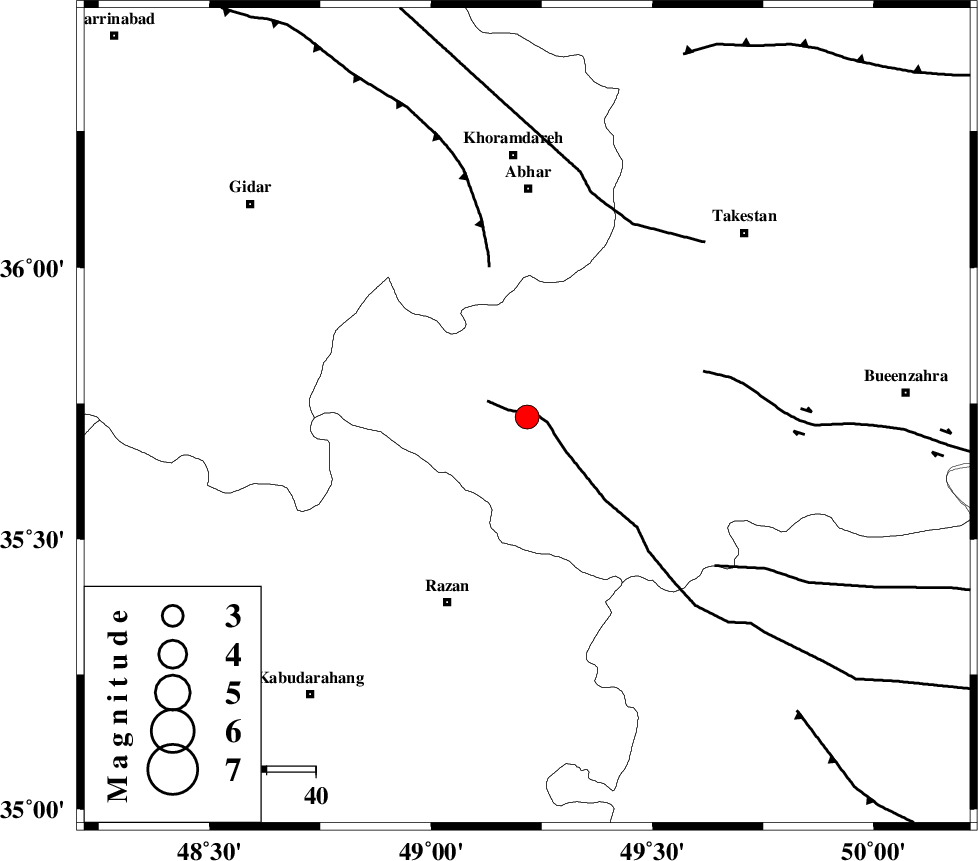

| Location | Lat:35.725 Lon: 49.217 |
| Region | Ghazvin Province, 47 km South of Abhar |
Nearest Cities |
|
| 7 km of Ab-e garm, Ghazvin Province | |
| 15 km North of Avaj, Ghazvin Province | |
| 21 km South West of Hoseynabad, Ghazvin Province | |
| 26 km North West of Kolanjin, Ghazvin Province | |
| 33 km South of Darsajin, Zanjan Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| KUSHK_E_NOSRAT_F (Length: 230 km) , Distance to epicenter: 2 km | |
| SOLTANIYEH_F (Length: 119 km) , Distance to epicenter: 32 km | |
| IPAK_F (Length: 80 km) , Distance to epicenter: 37 km | |
| Number of Phases | 26 |
| RMS | 0.4 |
| Number of Stations | 26 |
| Error in Latitude | >0.8 km |
| Error in Longitude | 0.8 km |
| Error in Depth | 1.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186141 | IIEES SC | HGHA | Z | 20 | 1 | 2023-09-08 18:14:22 | 2023-09-09 07:18:00 | n |
| 186142 | IIEES SC | ASAO | Z | 0.5 | 1 | 2023-09-08 18:14:40 | 2023-09-09 07:18:00 | n |
| 186143 | IIEES SC | THKV | Z | 0.4 | 1 | 2023-09-08 18:14:41 | 2023-09-09 07:18:00 | n |
| 186144 | IIEES SC | THKV | Z | 0.4 | 1 | 2023-09-08 18:14:59 | 2023-09-09 07:18:00 | n |
| 186145 | IIEES SC | CHTH | Z | 0.8 | 1 | 2023-09-08 18:14:44 | 2023-09-09 07:18:00 | n |
| 186146 | IIEES SC | CHTH | Z | 0.8 | 1 | 2023-09-08 18:15:05 | 2023-09-09 07:18:00 | n |
| 186147 | IIEES SC | GHVR | Z | 0.8 | 1 | 2023-09-08 18:14:53 | 2023-09-09 07:18:00 | n |
| 186148 | IIEES SC | KCHF | Z | 0.5 | 1 | 2023-09-08 18:14:56 | 2023-09-09 07:18:00 | n |
| 186149 | IIEES SC | DHR | Z | 0.3 | 1 | 2023-09-08 18:14:59 | 2023-09-09 07:18:00 | n |
| 186150 | IIEES SC | MAHB | Z | 0.1 | 1 | 2023-09-08 18:15:05 | 2023-09-09 07:18:00 | n |
| 186151 | IIEES SC | SRSL | Z | 0.1 | 1 | 2023-09-08 18:15:06 | 2023-09-09 07:18:00 | n |
| 186152 | IIEES SC | GTMR | Z | 0.1 | 1 | 2023-09-08 18:15:09 | 2023-09-09 07:18:00 | n |
| 186153 | IIEES SC | AZR | Z | 0.4 | 1 | 2023-09-08 18:15:09 | 2023-09-09 07:18:00 | n |
| 186154 | IIEES SC | MRD | Z | 0.07 | 1 | 2023-09-08 18:15:20 | 2023-09-09 07:18:00 | n |
| 186155 | IIEES SC | NASN | Z | 0.03 | 1 | 2023-09-08 18:15:22 | 2023-09-09 07:18:00 | n |
| 186156 | IIEES SC | ABGH | Z | 0.08 | 1 | 2023-09-08 18:15:28 | 2023-09-09 07:18:00 | n |
| 186157 | IIEES SC | YZKH | Z | 0.02 | 1 | 2023-09-08 18:15:40 | 2023-09-09 07:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | QABG | Z | EPg | E | 2023-09-08 18:14:21 | -0.7 | y | 0 | 33 | 93 | ||
| IIEES SC | QABG | Z | ESg | E | 2023-09-08 18:14:26 | -0.3 | y | 0 | 33 | 93 | ||
| IIEES SC | HGHA | Z | EPg | E | 2023-09-08 18:14:22 | -1.1 | y | 0 | 42 | 231 | ||
| IIEES SC | ZNJK | Z | EPg | E | 2023-09-08 18:14:34 | -1.6 | n | 4 | 115 | 336 | ||
| IIEES SC | ZNJK | Z | ESg | E | 2023-09-08 18:14:47 | -2.3 | n | 4 | 115 | 336 | ||
| IIEES SC | GIDE | Z | EPg | E | 2023-09-08 18:14:39 | -0.4 | y | 0 | 144 | 22 | ||
| IIEES SC | ASAO | Z | EPg | E | 2023-09-08 18:14:40 | -0.6 | y | 0 | 150 | 151 | ||
| IIEES SC | THKV | Z | EPg | E | 2023-09-08 18:14:41 | 0 | y | 0 | 152 | 82 | ||
| IIEES SC | THKV | Z | ESg | E | 2023-09-08 18:14:59 | 0 | y | 0 | 152 | 82 | ||
| IIEES SC | CHTH | Z | EPg | E | 2023-09-08 18:14:44 | -0.2 | y | 0 | 174 | 83 | ||
| IIEES SC | CHTH | Z | ESg | E | 2023-09-08 18:15:05 | 0.2 | y | 0 | 174 | 83 | ||
| IIEES SC | SNGE | Z | EPg | E | 2023-09-08 18:14:44 | -2.2 | n | 4 | 184 | 248 | ||
| IIEES SC | GHVR | Z | EPn | E | 2023-09-08 18:14:53 | 0.4 | y | 0 | 231 | 127 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-09-08 18:14:56 | 0.2 | y | 0 | 256 | 231 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-09-08 18:14:59 | 0.5 | y | 0 | 282 | 246 | ||
| IIEES SC | MAHB | Z | EPn | E | 2023-09-08 18:15:05 | -0.2 | y | 0 | 336 | 290 | ||
| IIEES SC | SRSL | Z | EPn | E | 2023-09-08 18:15:06 | -0.2 | y | 0 | 346 | 279 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-09-08 18:15:09 | 0.3 | y | 0 | 361 | 307 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-09-08 18:15:09 | 0.4 | y | 0 | 361 | 182 | ||
| IIEES SC | GLO | Z | EPn | E | 2023-09-08 18:15:17 | 0.8 | y | 0 | 424 | 78 | ||
| IIEES SC | ANJ | Z | EPn | E | 2023-09-08 18:15:26 | 9 | n | 4 | 427 | 94 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-09-08 18:15:20 | -0.2 | y | 0 | 455 | 317 | ||
| IIEES SC | NASN | Z | EPn | E | 2023-09-08 18:15:22 | 0.3 | y | 0 | 463 | 134 | ||
| IIEES SC | ABGH | Z | EPn | E | 2023-09-08 18:15:28 | 0 | y | 0 | 514 | 77 | ||
| IIEES SC | KLNJ | Z | EPn | E | 2023-09-08 18:15:48 | 14 | n | 4 | 568 | 157 | ||
| IIEES SC | YZKH | Z | EPn | E | 2023-09-08 18:15:40 | -0.3 | y | 0 | 619 | 127 | ||
