Magnitude |
:3.2 |
| Date & Time (UTC) | 2023-09-22 09:24:33.5 |
| Date & Time (Local) | 1402/6/31 12:54:33.5 |

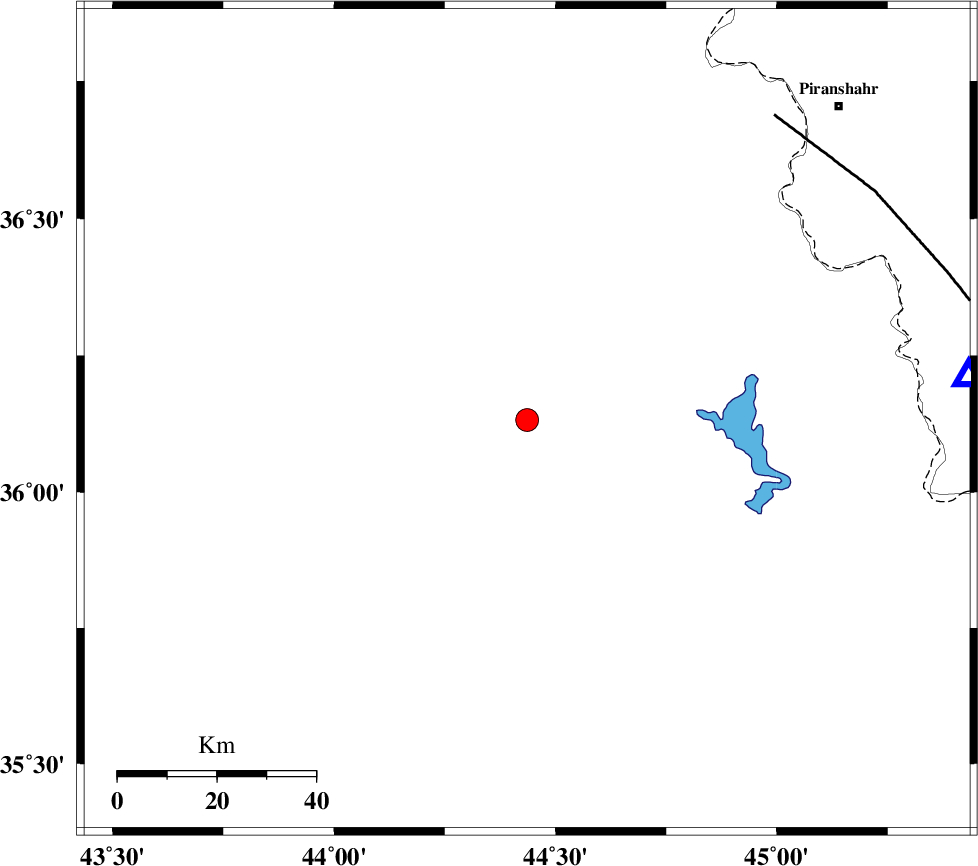

| Location | Lat:36.132 Lon: 44.436 |
| Region | Iraq, 92 km -West of Sardasht |
Nearest Cities |
|
| 85 km West of Bivaran-e sofla, Azarbaijan Gharbi Province | |
| 86 km South West of Kavir, Azarbaijan Gharbi Province | |
| 87 km South West of Chiyaneh, Azarbaijan Gharbi Province | |
| 88 km South West of Mirabad, Azarbaijan Gharbi Province | |
| 90 km South West of Piranshahr, Azarbaijan Gharbi Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| PIRANSHAHR_F (Length: 253 km) , Distance to epicenter: 80 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 126 km | |
| Number of Phases | 13 |
| RMS | 0.4 |
| Number of Stations | 13 |
| Error in Latitude | >5.3 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 11.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 186777 | IIEES SC | SRSL | Z | 1 | 1 | 2023-09-22 09:24:48 | 2023-09-23 06:25:00 | n |
| 186778 | IIEES SC | MAHB | Z | 0.5 | 1 | 2023-09-22 09:24:56 | 2023-09-23 06:25:00 | n |
| 186779 | IIEES SC | DHR | Z | 0.5 | 1 | 2023-09-22 09:25:11 | 2023-09-23 06:25:00 | n |
| 186780 | IIEES SC | MRD | Z | 0.2 | 1 | 2023-09-22 09:25:19 | 2023-09-23 06:25:00 | n |
| 186781 | IIEES SC | KCHF | Z | 0.2 | 1 | 2023-09-22 09:25:21 | 2023-09-23 06:25:00 | n |
| 186782 | IIEES SC | ILBA | Z | 0.07 | 1 | 2023-09-22 09:25:21 | 2023-09-23 06:25:00 | n |
| 186783 | IIEES SC | ASAO | Z | 0.02 | 1 | 2023-09-22 09:25:49 | 2023-09-23 06:25:00 | n |
| 186784 | IIEES SC | GTMR | Z | 0.02 | 1 | 2023-09-22 09:25:54 | 2023-09-23 06:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | SRSL | Z | EPg | E | 2023-09-22 09:24:48 | -0.3 | y | 0 | 90 | 84 | ||
| IIEES SC | SRSL | Z | ESg | E | 2023-09-22 09:25:02 | 2 | n | 4 | 90 | 84 | ||
| IIEES SC | MAHB | Z | EPg | E | 2023-09-22 09:24:56 | 0.1 | y | 0 | 134 | 58 | ||
| IIEES SC | MAHB | Z | ESg | E | 2023-09-22 09:25:14 | 2.2 | n | 4 | 134 | 58 | ||
| IIEES SC | AZR | Z | EPn | E | 2023-09-22 09:25:08 | -0.4 | y | 0 | 220 | 39 | ||
| IIEES SC | DHR | Z | EPn | E | 2023-09-22 09:25:11 | -0.1 | y | 0 | 238 | 132 | ||
| IIEES SC | MRD | Z | EPn | E | 2023-09-22 09:25:19 | 0 | y | 0 | 308 | 21 | ||
| IIEES SC | KCHF | Z | EPn | E | 2023-09-22 09:25:21 | 0.4 | y | 0 | 314 | 131 | ||
| IIEES SC | ILBA | Z | EPn | E | 2023-09-22 09:25:21 | -0.4 | y | 0 | 322 | 150 | ||
| IIEES SC | QABG | Z | EPn | E | 2023-09-22 09:25:40 | 1 | y | 0 | 467 | 96 | ||
| IIEES SC | ASAO | Z | EPn | E | 2023-09-22 09:25:49 | 0.8 | y | 0 | 538 | 109 | ||
| IIEES SC | GTMR | Z | EPn | E | 2023-09-22 09:25:54 | -0.4 | y | 0 | 592 | 133 | ||
| IIEES SC | ARPR | Z | EPn | E | 2023-09-22 09:25:53 | -6.2 | n | 4 | 631 | 301 | ||
