Magnitude |
:3.8 |
| Date & Time (UTC) | 2021-07-31 23:41:23.7 |
| Date & Time (Local) | 1400/5/10 04:11:23.7 |

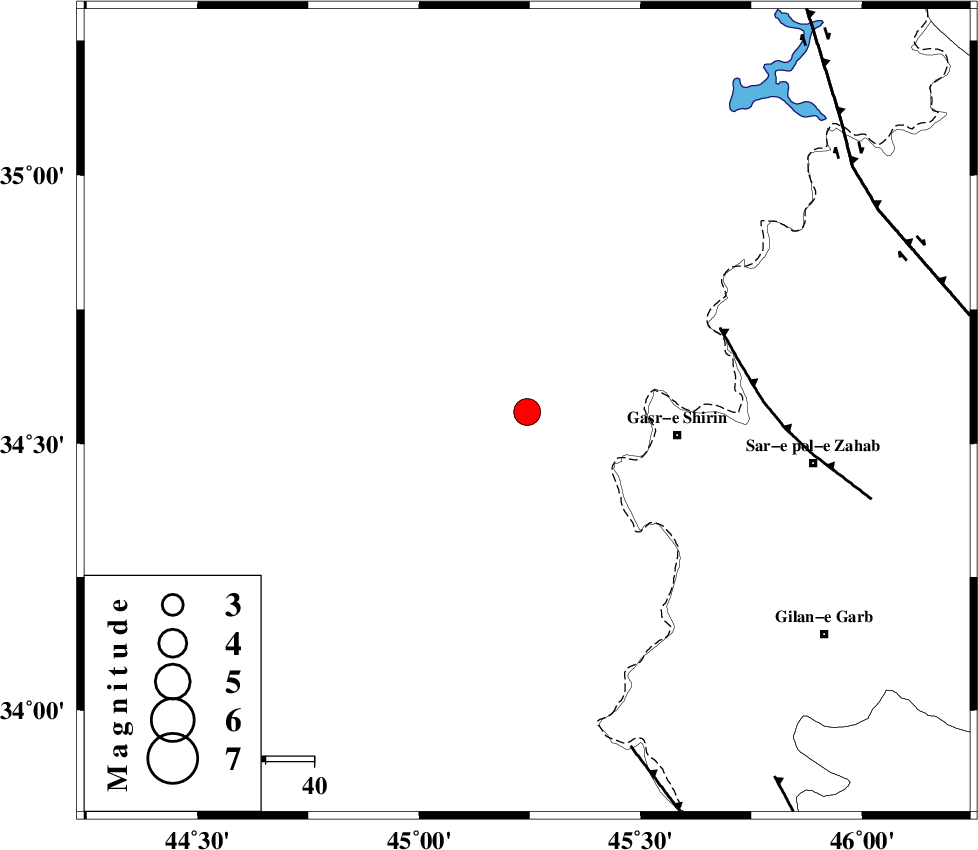

| Location | Lat:34.559 Lon: 45.244 |
| Region | Iraq, 31 km -West of Qasr-E-Shirin |
Nearest Cities |
|
| 27 km North West of Khosravi, Kermanshah Province | |
| 31 km North West of Qasr-E-Shirin, Kermanshah Province | |
| 35 km North West of Seyyed sohrab, Kermanshah Province | |
| 39 km North West of Aqabarar, Kermanshah Province | |
| 48 km West of Mirmiru, Kermanshah Province | |
| Depth | 12 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 43 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 73 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 84 km | |
| Number of Phases | 11 |
| RMS | 0.5 |
| Number of Stations | 11 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 4.9 km |
| Error in Depth | 6.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 164557 | IIEES SC | MAHB | Z | 2 | 1 | 2021-07-31 23:42:30 | 2021-08-03 07:00:00 | n |
| 164558 | IIEES SC | MAHB | Z | 2 | 1 | 2021-07-31 23:42:02 | 2021-08-03 07:00:00 | n |
| 164559 | IIEES SC | GTMR | Z | 0.2 | 1 | 2021-07-31 23:42:23 | 2021-08-03 07:00:00 | n |
| 164560 | IIEES SC | MRD | Z | 0.2 | 1 | 2021-07-31 23:42:30 | 2021-08-03 07:00:00 | n |
| 164561 | IIEES SC | GRMI | Z | 0.04 | 1 | 2021-07-31 23:42:37 | 2021-08-03 07:00:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES SC | ILBA | Z | EPg | E | 2021-07-31 23:41:46 | -0.2 | y | 0 | 137 | 139 | ||
| IIEES SC | ILBA | Z | ESg | E | 2021-07-31 23:42:03 | 0.4 | y | 0 | 137 | 139 | ||
| IIEES SC | SNGE | Z | EPn | E | 2021-07-31 23:41:56 | 0.2 | y | 0 | 201 | 73 | ||
| IIEES SC | MAHB | Z | EPn | E | 2021-07-31 23:42:02 | 0.3 | y | 0 | 248 | 10 | ||
| IIEES SC | MAHB | Z | ES | E | 2021-07-31 23:42:30 | -0.4 | y | 0 | 248 | 10 | ||
| IIEES SC | AZR | Z | EPn | E | 2021-07-31 23:42:15 | -0.2 | y | 0 | 352 | 11 | ||
| IIEES SC | ZNJK | Z | EPn | E | 2021-07-31 23:42:18 | -2.2 | n | 4 | 390 | 53 | ||
| IIEES SC | GTMR | Z | EPn | E | 2021-07-31 23:42:23 | -1.1 | y | 0 | 428 | 123 | ||
| IIEES SC | KHMZ | Z | EPn | E | 2021-07-31 23:42:22 | -4.1 | n | 4 | 445 | 102 | ||
| IIEES SC | MRD | Z | EPn | E | 2021-07-31 23:42:30 | 0.9 | y | 0 | 463 | 5 | ||
| IIEES SC | GRMI | Z | EPn | E | 2021-07-31 23:42:37 | 0.1 | y | 0 | 528 | 27 | ||
